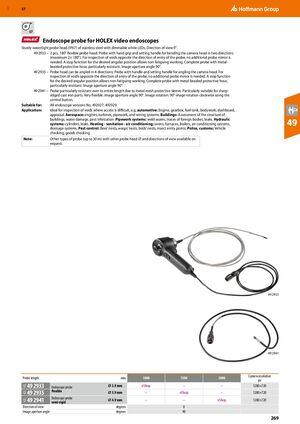

GBP 57 IP 67 Endoscope probe for HOLEX video endoscopes Sturdy watertight probe head (IP67) of stainless steel with dimmable white LEDs. Direction of view 0°. 49 2933 – 2 pcs. 180° flexible probe head: Probe with hand grip and setting handle for bending the camera head in two directions (maximum 2× 180°). For inspection of voids opposite the direction of entry of the probe, no additional probe mirror is needed. A stop function for the desired angular position allows non-fatiguing working. Complete probe with metal- braided protective hose, particularly resistant. Image aperture angle 90°. 49 2935 – Probe head can be angled in 4 directions: Probe with handle and setting handle for angling the camera head. For inspection of voids opposite the direction of entry of the probe, no additional probe mirror is needed. A stop function for the desired angular position allows non-fatiguing working. Complete probe with metal-braided protective hose, particularly resistant. Image aperture angle 90°. 49 2941 – Probe particularly resistant over its entire length due to metal mesh protective sleeve. Particularly suitable for sharp- edged cast iron parts. Very flexible. Image aperture angle 90°. Image rotation: 90° image rotation clockwise using the control button. Suitable for: All endoscope versions No. 492927; 492929. Application: Ideal for inspection of voids where access is difficult, e.g. automotive: Engine, gearbox, fuel tank, bodywork, dashboard, appraisal. Aerospace: engines, turbines, pipework, and wiring systems. Buildings: Assessment of the structure of buildings, water damage, pest infestation. Pipework systems: weld seams, traces of foreign bodies, leaks. Hydraulic systems: cylinders, leaks. Heating - sanitation - air conditioning: ovens, furnaces, boilers, air conditioning systems, drainage systems. Pest control: Bees’ nests, wasps’ nests, birds’ nests, insect entry points. Police, customs: Vehicle 49 checking, goods checking. Note: Other types of probe (up to 30 m) with other probe head ⌀ and directions of view available on request. ​ 49 2933 ​ 49 2941 Camera resolution Probe length mm 1000 1500 3000 px 49 2933 ⌀ 3.9 mm eShop – – 1280×720 42L 42L Endoscope probe flexible 49 2935 ⌀ 3.9 mm – eShop – 1280×720 Endoscope probe 49 2941 ⌀ 4.9 mm – – eShop 1280×720 42L semi-rigid Direction of view degrees 0 ​ Image aperture angle degrees 90 ​ 269
