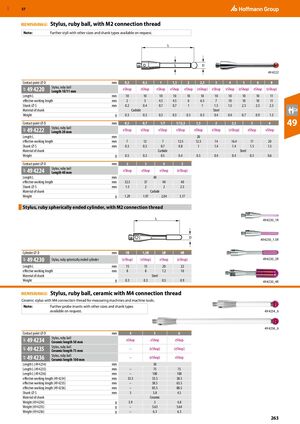

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 263

GBP 57 ​ Stylus, ruby ball, with M2 connection thread Note: Further styli with other sizes and shank types available on request. L S D 49 4222 Contact point ⌀ D mm 0,3 0,5 1 1,5 2 2,5 3 4 5 6 8 Stylus, ruby ball 49 4220 eShop eShop eShop eShop eShop (eShop) eShop eShop (eShop) eShop (eShop) 49F Length 10/11 mm Length L mm 10 10 10 10 10 10 10 10 10 10 11 effective working length mm 2 3 4.5 4.5 6 6.5 7 10 10 10 11 Shank ⌀ S mm 0.2 0.4 0.7 0.7 1 1 1.5 1.5 2.5 2.5 2.5 Material of shank Carbide Steel Weight g 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.7 0.9 1.5 Contact point ⌀ D Stylus, ruby ball mm 0,5 0,7 1/7 1/12,5 1,5 2 2,5 3 4 49 49 4222 eShop eShop eShop eShop eShop eShop (eShop) eShop eShop 49F Length 20 mm Length L mm 20 effective working length mm 7 12 7 12.5 12.5 14 16.4 17 20 Shank ⌀ S mm 0.3 0.5 0.7 0.8 1 1.4 1.4 1.5 1.5 Material of shank Carbide Steel Weight g 0.5 0.3 0.5 0.4 0.5 0.4 0.4 0.5 0.6 Contact point ⌀ D mm 2 3 4 5 Stylus, ruby ball 49 4224 eShop eShop eShop (eShop) 49F Length 40 mm Length L mm 40 effective working length mm 32.5 37 40 40 Shank ⌀ S mm 1.5 2 2 2.5 Material of shank Carbide Weight g 1.29 1.97 2.04 3.17 Stylus, ruby spherically ended cylinder, with M2 connection thread ​ L 49 4230_1R D 49 4230_1.5R Cylinder ⌀ D mm 1R 1,5R 2R 4R 49 4230 Stylus, ruby spherically ended cylinder (eShop) (eShop) eShop (eShop) 49 4230_2R 49F Length L mm 15 15 20 22 effective working length mm 8 8 7.2 10 Material of shank Steel Weight g 0.3 0.3 0.5 0.9 49 4230_4R ​ Stylus, ruby ball, ceramic with M4 connection thread Ceramic stylus with M4 connection thread for measuring machines and machine tools. Note: Further probe inserts with other sizes and shank types available on request. 49 4234_6 49 4236_6 Contact point ⌀ D mm 4 5 6 Stylus, ruby ball 49 4234 eShop eShop eShop 49F Ceramic length 50 mm Stylus, ruby ball 49 4235 – (eShop) (eShop) 49F Ceramic length 75 mm Stylus, ruby ball 49 4236 – (eShop) eShop 49F Ceramic length 100 mm Length L (49 4234) mm 50 Length L (49 4235) mm – 75 75 Length L (49 4236) mm – 100 100 effective working length (49 4234) mm 33.5 33.5 38.5 effective working length (49 4235) mm – 58.5 63.5 effective working length (49 4236) mm – 83.5 88.5 Shank ⌀ S mm 3 3.8 4.5 Material of shank Ceramic Weight (49 4234) g 3.9 5 4.8 Weight (49 4235) g – 5.63 5.64 Weight (49 4236) g – 6.3 6.3 263
