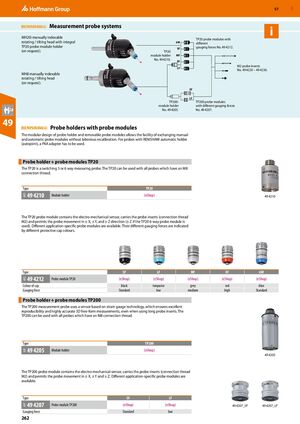

GBP 57 Measurement probe systems MH20i manually indexable TP20 probe modules with rotating / tilting head with integral 6W different TP20 probe module holder SF gauging forces No. 49 4212. (on request). TP20 module holder MF No. 49 4210. EF M2 probe inserts LF No. 49 4220 – 49 4230. MH8 manually indexable rotating / tilting head (on request). SF LF TP200- TP200 probe modules module holder with different gauging forces No. 49 4205. No. 49 4207. 49 ​ Probe holders with probe modules The modular design of probe holder and removable probe modules allows the facility of exchanging manual and automatic probe modules without laborious recalibration. For probes with RENISHAW automatic holder (autojoint), a PAA adapter has to be used. Probe holder + probe modules TP20 ​ The TP20 is a switching 5 or 6 way measuring probe. The TP20 can be used with all probes which have an M8 connection thread. Type TP20 49 4210 49D Module holder (eShop) 49 4210 The TP20 probe module contains the electro-mechanical sensor, carries the probe inserts (connection thread M2) and permits the probe movement in ± X, ± Y, and ± Z direction (± Z if the TP20 6-way probe module is used). Different application-specific probe modules are available. Their different gauging forces are indicated by different protective cap colours. Type SF LF MF EF 6W 49 4212 49D Probe module TP20 (eShop) (eShop) (eShop) (eShop) (eShop) Colour of cap black turquoise grey red blue Gauging force Standard low medium high Standard Probe holder + probe modules TP200 ​ The TP200 measurement probe uses a sensor based on strain gauge technology, which ensures excellent reproducibility and highly accurate 3D free-form measurements, even when using long probe inserts. The TP200 can be used with all probes which have an M8 connection thread. Type TP200 49 4205 Module holder (eShop) 49F 49 4205 The TP200 probe module contains the electro-mechanical sensor, carries the probe inserts (connection thread M2) and permits the probe movement in ± X, ± Y and ± Z. Different application-specific probe modules are available. Type SF LF 49 4207 Probe module TP200 (eShop) (eShop) 49F 49 4207_SF 49 4207_LF Gauging force Standard low 262
