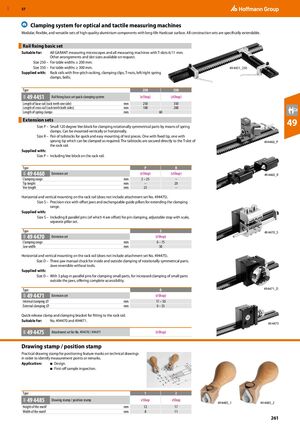

GBP 57 ​ Clamping system for optical and tactile measuring machines Modular, flexible, and versatile sets of high-quality aluminium components with long-life Hardcoat surface. All construction sets are specifically extendable. Rail fixing basic set ​ Suitable for: All GARANT measuring microscopes and all measuring machines with T-slots 6/11 mm. Other arrangements and slot sizes available on request. Size 250 – For table widths ≥ 200 mm. Size 350 – For table widths ≥ 300 mm. 49 4451_250 Supplied with: Rack rails with fine-pitch racking, clamping clips, T-nuts, left/right spring clamps, bolts. Type 250 350 49 4451 Rail fixing basic set quick-clamping system (eShop) (eShop) 49K Length of base rail (rack teeth one side) mm 250 350 Length of cross rail (rack teeth both sides) mm 100 200 Length of spring clamps mm 60 Extension sets Size P – Small 120 degree Vee block for clamping rotationally symmetrical parts by means of spring ​ 49 clamps. Can be mounted vertically or horizontally. Size R – Pair of tailstocks for quick and easy mounting of test pieces. One with fixed tip, one with sprung tip which can be clamped as required. The tailstocks are secured directly to the T-slot of 49 4460_P the rack rail. Supplied with: Size P – Including Vee block on the rack rail. Type P R 49 4460 Extension set (eShop) (eShop) 49K 49 4460_R Clamping range mm 2 – 25 – Tip height mm – 20 Vee length mm 25 – Horizontal and vertical mounting on the rack rail (does not include attachment set No. 494475). Size S – Precision vice with offset jaws and exchangeable guide pillars for extending the clamping range. Supplied with: Size S – Including 8 parallel pins (of which 4 are offset) for pin clamping, adjustable stop with scale, separate pillar set. Type S 49 4470_S 49 4470 Extension set (eShop) 49K Clamping range mm 0 – 75 Jaw width mm 50 Horizontal and vertical mounting on the rack rail (does not include attachment set No. 494475). Size D – Three-jaw manual chuck for inside and outside clamping of rotationally symmetrical parts. Jaws reversible without tools. Supplied with: Size D – With 3 plug-in parallel pins for clamping small parts, for increased clamping of small parts outside the jaws, offering complete accessibility. Type D 49 4471_D 49 4471 Extension set (eShop) 49K Internal clamping ⌀ mm 17 – 50 External clamping ⌀ mm 0 – 55 Quick-release clamp and clamping bracket for fitting to the rack rail. Suitable for: No. 494470 and 494471. 49 4475 49 4475 Attachment set for No. 494470 / 494471 (eShop) 49K ​Drawing stamp / position stamp Practical drawing stamp for positioning feature marks on technical drawings in order to identify measurement points or remarks. Application: ■ Design. ■ First-off sample inspection. Type 1 2 49 4485 Drawing stamp / position stamp eShop eShop 49K 49 4485_1 49 4485_2 Height of the motif mm 12 17 Width of the motif mm 8 11 261
