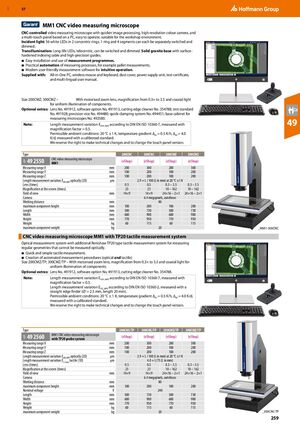

GBP 57 ​ MM1 CNC video measuring microscope CNC-controlled video measuring microscope with quicker image processing, high-resolution colour camera, and a multi-touch panel based on a PC, easy to operate, suitable for the workshop environment. Incident light: 56 white LEDs in 2 concentric rings. 1 ring and 4 segments can each be separately switched and dimmed. Transillumination: Long-life LEDs, telecentric, can be switched and dimmed. Solid granite base with surface- hardened indexing table and high-precision guides. ■ Easy installation and use of measurement programmes. ■ Practical automation of measuring processes, for example pallet measurements. ■ Modern user-friendly measurement software for intuitive operation. Supplied with: All-in-One PC, wireless mouse and keyboard, dust cover, power supply unit, test certificate, and multi-lingual user manual. Size 200CMZ; 300CMZ – With motorised zoom lens, magnification from 0.3× to 3.5 and coaxial light for uniform illumination of components. Optional extras: Lens No. 491912, software option No. 491913, cutting edge cleaner No. 354788; test standard No. 491928; precision vice No. 494480; quick-clamping system No. 494451; base cabinet for measuring microscopes No. 492580. Note: Length measurement variation EUXY, MPE according to DIN EN ISO 10360-7, measured with magnification factor = 0.5. 49 Permissible ambient conditions: 20 °C ± 1 K, temperature gradient Δth = 0.5 K/h, Δtd = 4.0 K/d, measured with a calibrated standard. We reserve the right to make technical changes and to change the touch panel version. Type 200CNC 300CNC 200CMZ 300CMZ CNC video measuring microscope 49 2550 (eShop) (eShop) (eShop) (eShop) 41P MM1 Measuring range X mm 200 300 200 300 Measuring range Y mm 100 200 100 200 Measuring range Z mm 100 200 100 200 Length measurement variation EUXY, MPE optically (2D) µm 2.9 + L / 100 (L in mm) at 20 °C ±1 K Lens (times) 0.5 0.5 0.3 – 3.5 0.3 – 3.5 Magnification at the screen (times) 23 23 10 – 162 10 – 162 Field of view mm 14×9 14×9 24×16 – 2×1 24×16 – 2×1 Camera 6.4 megapixels, autofocus Working distance mm 80 maximum component height mm 100 200 100 200 Length mm 500 730 500 730 Width mm 600 900 600 900 Height mm 770 950 770 950 Weight kg 60 115 60 115 maximum component weight kg 20 _MM1-300CNC CNC video measuring microscope MM1 with TP20 tactile measurement system ​ Optical measurement system with additional Renishaw TP20 type tactile measurement system for measuring regular geometries that cannot be measured optically. ■ Quick and simple tactile measurement. ■ Creation of automated measurement procedures (optical and tactile) Size 200CMZ/TP; 300CMZ/TP – With motorised zoom lens, magnification from 0.3× to 3.5 and coaxial light for uniform illumination of components. Optional extras: Lens No. 491912, software option No. 491913, cutting edge cleaner No. 354788. Note: Length measurement variation EUXY, MPE according to DIN EN ISO 10360-7, measured with magnification factor = 0.5. Length measurement variation EOZ, MPE according to DIN EN ISO 10360-2, measured with a straight edge finder (⌀ = 2.5 mm, length 20 mm). Permissible ambient conditions: 20 °C ± 1 K, temperature gradient Δth = 0.5 K/h, Δtd = 4.0 K/d, measured with a calibrated standard. We reserve the right to make technical changes and to change the touch panel version. Type 200CNC/TP 300CNC/TP 200CMZ/TP 300CMZ/TP MM1 CNC video measuring microscope 49 2560 (eShop) (eShop) (eShop) (eShop) 41P with TP20 probe system Measuring range X mm 200 300 200 300 Measuring range Y mm 100 200 100 200 Measuring range Z mm 100 200 100 200 Length measurement variation EUXY, MPE optically (2D) µm 2.9 + L / 100 (L in mm) at 20 °C ±1 K Length measurement variation E1, Z axis tactile (1D) µm 4.0 + L/75 (L in mm) Lens (times) 0.5 0.5 0.3 – 3.5 0.3 – 3.5 Magnification at the screen (times) 23 23 10 – 162 10 – 162 Field of view mm 14×9 14×9 24×16 – 2×1 24×16 – 2×1 Camera 6.4 megapixels, autofocus Working distance mm 80 maximum component height mm 100 200 100 200 Nominal voltage V 240 Length mm 500 730 500 730 Width mm 600 900 600 900 Height mm 770 950 770 950 Weight kg 60 115 60 115 maximum component weight kg 20 _300CNC-TP 259
