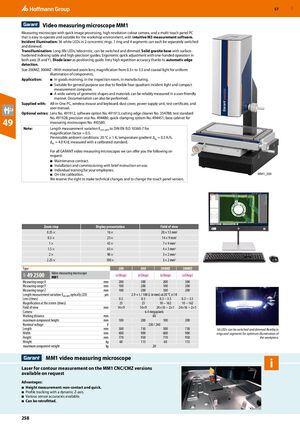

GBP 57 ​ Video measuring microscope MM1 Measuring microscope with quick image processing, high-resolution colour camera, and a multi-touch panel PC that is easy to operate and suitable for the workshop environment, with intuitive M3 measurement software. Incident illumination: 56 white LEDs in 2 concentric rings. 1 ring and 4 segments can each be separately switched and dimmed. Transillumination: Long-life LEDs, telecentric, can be switched and dimmed. Solid granite base with surface- hardened indexing table and high-precision guides. Ergonomic quick adjustment with one-handed operation in both axes (X and Y). Diode laser as positioning guide. Very high repetition accuracy thanks to automatic edge detection. Size 200MZ; 300MZ –With motorised zoom lens, magnification from 0.3× to 3.5 and coaxial light for uniform illumination of components. Application: ■ In goods receiving, in the inspection room, in manufacturing. ■ Suitable for general purpose use due to flexible four-quadrant incident light and compact measurement computer. ■ A wide variety of geometric shapes and materials can be reliably measured in a user-friendly manner. Documentation can also be performed. Supplied with: All-in-One PC, wireless mouse and keyboard, dust cover, power supply unit, test certificate, and user manual. Optional extras: Lens No. 491912, software option No. 491913, cutting edge cleaner No. 354788; test standard No. 491928; precision vice No. 494480; quick-clamping system No. 494451; base cabinet for 49 Note: measuring microscopes No. 492580. Length measurement variation EUXY, MPE to DIN EN ISO 10360-7 for magnification factor = 0.5. Permissible ambient conditions: 20 °C ± 1 K, temperature gradient Δth = 0.5 K/h, Δth = 4.0 K/d, measured with a calibrated standard. For all GARANT video measuring microscopes we can offer you the following on request: ■ Maintenance contract. ■ Installation and commissioning with brief instruction on use. ■ Individual training for your employees. ■ On-site calibration. MM1_200 We reserve the right to make technical changes and to change the touch panel version. Zoom step Display presentation Field of view 0.35 × 16 × 20 × 13 mm2 0.5 × 23 × 14 × 9 mm2 1× 43 × 7 × 4 mm2 1.5 × 65 × 4 × 3 mm2 2× 90 × 3 × 2 mm2 2.25 × 100 × 3 × 2 mm2 Type 200 300 200MZ 300MZ Video measuring microscope 49 2500 (eShop) (eShop) (eShop) (eShop) 41P MM1 Measuring range X mm 200 300 200 300 Measuring range Y mm 100 200 100 200 Measuring range Z mm 100 200 100 200 Length measurement variation EUXY, MPE optically (2D) µm 2.9 + L / 100 (L in mm) at 20 °C ±1 K Lens (times) 0.5 0.5 0.3 − 3.5 0.3 − 3.5 Magnification at the screen (times) 23 23 10 − 162 10 − 162 Field of view mm 14×9 14×9 24×16 − 2×1 24×16 − 2×1 Camera Camera 6.4 6.4 megapixels megapixels Working Working distance distance mm mm 80 80 maximum component maximum component height height mm mm 100 100 200 200 100 100 200 200 Nominal voltage Nominal voltage VV 230 // 240 230 240 Length Length mm mm 500 500 730 730 500 500 730 730 56 LEDs can be switched and dimmed flexibly in Width Width mm mm 600 600 900 900 600 600 900 900 rings and segments for optimum illumination of Height Height mm mm 770 770 950 950 770 770 950 950 the workpiece. Weight Weight kg kg 60 60 115 115 60 60 115 115 maximum component weight kg 20 maximum component weight kg 20 MM1 video measuring microscope Laser for contour measurement on the MM1 CNC/CMZ versions available on request Advantages: ■ Height measurement: non-contact and quick. ■ Profile tracking with a dynamic Z-axis. ■ Various sensor accuracies available. ■ Can be retrofitted. 258
