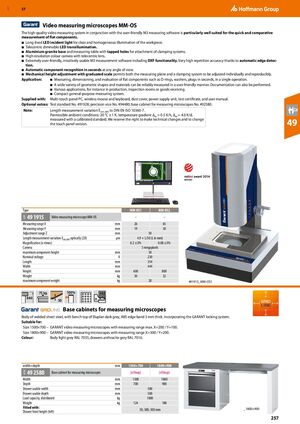

GBP 57 ​ Video measuring microscopes MM-OS The high-quality video measuring system in conjunction with the user-friendly M3 measuring software is particularly well suited for the quick and comparative measurement of flat components. ■ Long-lived LED incident light for clear and homogeneous illumination of the workpiece. ■ Telecentric dimmable LED transillumination. ■ Aluminium granite base and measuring table with tapped holes for attachment of clamping systems. ■ High-resolution colour camera with telecentric lens. ■ Extremely user-friendly, intuitively usable M3 measurement software including DXF functionality. Very high repetition accuracy thanks to automatic edge detec- tion. ■ Automatic component recognition in seconds at any angle of view. ■ Mechanical height adjustment with graduated scale permits both the measuring plane and a clamping system to be adjusted individually and reproducibly. Application: ■ Measuring, dimensioning, and evaluation of flat components such as O-rings, washers, plugs in seconds, in a single operation. ■ A wide variety of geometric shapes and materials can be reliably measured in a user-friendly manner. Documentation can also be performed. ■ Various applications, for instance in production, inspection rooms or goods receiving. ■ Compact general-purpose measuring system. Supplied with: Multi-touch panel PC, wireless mouse and keyboard, dust cover, power supply unit, test certificate, and user manual. Optional extras: Test standard No. 491928; precision vice No. 494480; base cabinet for measuring microscopes No. 492580. Note: Length measurement variation EUXY, MPE to DIN EN ISO 10360-7. Permissible ambient conditions: 20 °C ± 1 K, temperature gradient Δth = 0.5 K/h, Δtd = 4.0 K/d, 49 measured with a calibrated standard. We reserve the right to make technical changes and to change the touch panel version. Type MM-OS1 MM-OS2 49 1915 Video measuring microscope MM-OS – – 41P Measuring range X mm 26 65 Measuring range Y mm 19 50 Adjustment range Z mm 50 Length measurement variation EUXY, MPE optically (2D) µm 4.9 + L/50 (L in mm) Magnification (x-times) 0.2 ±3% 0.08 ±3% Camera 5 megapixels maximum component height mm 50 Nominal voltage V 230 Length mm 354 Width mm 444 Height mm 600 800 Weight kg 30 32 maximum component weight kg 20 491915_MM-OS1 75 kg 100% 840 50 Base cabinets for measuring microscopes Body of welded sheet steel, with bench top of Eluplan dark grey, ABS edge band 3 mm thick. Incorporating the GARANT locking system. Suitable for: Size 1500×700 – GARANT video measuring microscopes with measuring range max. X=200 / Y=100. Size 1800×900 – GARANT video measuring microscopes with measuring range X=300 / Y=200. Colour: Body light grey RAL 7035, drawers anthracite grey RAL 7016. width×depth mm 1500×700 1800×900 49 2580 41M Base cabinet for measuring microscopes (eShop) (eShop) Width mm 1500 1800 Depth mm 700 900 Drawer usable width mm 500 Drawer usable depth mm 500 Load capacity, distributed kg 1000 Weight kg 124 188 Fitted with: _1800×900 50; 300; 300 mm Drawer front height (left) 257
