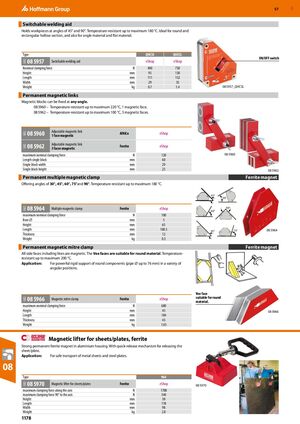

GBP 57 Switchable welding aid ​ Holds workpieces at angles of 45° and 90°. Temperature-resistant up to maximum 180 °C. Ideal for round and rectangular hollow section, and also for angle material and flat material. Type QHCSS QHCSL ON/OFF switch 08 5957 08Q Switchable welding aid eShop eShop Nominal clamping force N 400 750 Height mm 95 130 Length mm 111 152 Width mm 29 35 Weight kg 0.7 1.4 08 5957_QHCSL Permanent magnetic links ​ Magnetic blocks can be fixed at any angle. 08 5960 – Temperature-resistant up to maximum 220 °C, 1 magnetic face. 08 5962 – Temperature-resistant up to maximum 100 °C, 3 magnetic faces. Adjustable magnetic link 08 5960 08Q AlNiCo eShop 1 face magnetic Adjustable magnetic link 08 5962 08Q Ferrite eShop 3 faces magnetic maximum nominal clamping force N 120 ​ 08 5960 Length single block mm 60 Single block width mm 29 Single block height mm 25 ​ 08 5962 Permanent multiple magnetic clamp Ferrite magnet Offering angles of 30°, 45°, 60°, 75°and 90°. Temperature-resistant up to maximum 180 °C. 45° 30° 08 5964 90° 08Q Multiple magnetic clamp Ferrite eShop 60° maximum nominal clamping force N 100 Bore ⌀ mm 5 Height mm 65 Length mm 100.5 45° 75° 08 5964 Thickness mm 12 Weight kg 0.3 Permanent magnetic mitre clamp Ferrite magnet All side faces including Vees are magnetic. The Vee faces are suitable for round material. Temperature- resistant up to maximum 200 °C. Application: For powerful rigid support of round components (pipe ⌀ up to 76 mm) in a variety of angular positions. Vee face suitable for round 08 5966 08Q Magnetic mitre clamp Ferrite eShop material. maximum nominal clamping force N 680 Height mm 45 08 5966 Length mm 184 Thickness mm 43 Weight kg 1.65 ​ Magnetic lifter for sheets/plates, ferrite Strong permanent ferrite magnet in aluminium housing. With quick-release mechanism for releasing the sheet/plate. Application: For safe transport of metal sheets and steel plates. 08 Type 964 08 5970 08Q Magnetic lifter for sheets/plates Ferrite eShop 08 5970 maximum clamping force along the axis N 1700 maximum clamping force 90° to the axis N 340 Height mm 38 Length mm 118 Width mm 98 Weight kg 2.8 1178
