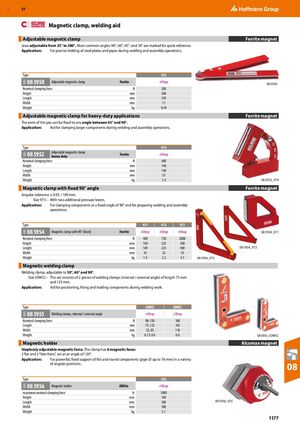

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1177

GBP 57 ​ Magnetic clamp, welding aid Adjustable magnetic clamp Ferrite magnet Jaws adjustable from 25° to 280°. Most common angles 90°, 60°, 45°, and 30° are marked for quick reference. Application: For precise holding of steel plates and pipes during welding and assembly operations. Type 952 08 5950 08Q Adjustable magnetic clamp Ferrite eShop 08 5950 Nominal clamping force N 200 Height mm 200 Length mm 195 Width mm 11 Weight kg 0.49 Adjustable magnetic clamp for heavy-duty applications Ferrite magnet The arms of the jaw can be fixed to any angle between 45° and 90°. Application: Aid for clamping larger components during welding and assembly operations. Type 974 Adjustable magnetic clamp 08 5952 08Q Ferrite eShop heavy-duty Nominal clamping force N 400 Height mm 140 ​ Length mm 140 Width mm 35 Weight kg 1.4 08 5952_974 Magnetic clamp with fixed 90° angle Ferrite magnet Angular tolerance ± 0.05 / 100 mm. Size 973 – With two additional pressure levers. Application: For clamping components at a fixed angle of 90° and for preparing welding and assembly operations. ​ Type 971 972 973 08 5954 08Q Magnetic clamp with 90° (fixed) Ferrite eShop eShop eShop 08 5954_971 Nominal clamping force N 400 750 2000 Height mm 140 225 300 Length mm 140 225 300 08 5954_972 Width mm 35 22 35 Weight kg 1.4 2.2 4.7 08 5954_973 Magnetic welding clamp ​ Welding clamp, adjustable to 30°, 60° and 90°. Size IOWCC – The set consists of 2 pieces of welding clamps (internal / external angle) of length 75 mm and 125 mm. Application: Aid for positioning, fixing and holding components during welding work. Type IOWCC IOWCL 08 5955 08Q Welding clamps, internal / external angle eShop eShop Nominal clamping force N 90; 150 180 Length mm 75; 125 165 Width mm 52; 85 110 Weight kg 0.13; 0.4 0.8 08 5955_IOWCC Magnetic holder Alcomax magnet Steplessly adjustable magnetic force. The clamp has 6 magnetic faces: 3 flat and 3 “Vee-form”, set at an angle of 120°. Application: For powerful, fixed support of flat and round components (pipe ⌀ up to 76 mm) in a variety 08 of angular positions. Type 925 08 5956 08Q Magnetic holder AlNiCo eShop maximum nominal clamping force N 1000 Height mm 140 Length mm 108 08 5956_925 Width mm 108 Weight kg 5.7 1177
