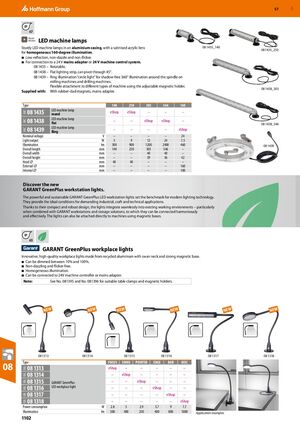

LED machine lamps
Sturdy LED machine lamps in an aluminium casing, with a satinised acrylic lens 08 1435_140 for homogeneous 160-degree illumination. 08 1435_250
- Low-reflection, non-dazzle and non-flicker.
- For connection to a 24 V mains adapter or 24 V machine control system. 08 1435 – Rotatable. 08 1438 – Flat lighting strip, can pivot through 45°. 08 1439 – Ring illumination “circle light” for shadow-free 360° illumination around the spindle on
milling machines and drilling machines. Flexible attachment to different types of machine using the adjustable magnetic holder.
Supplied with: 08 1438_303 With rubber-clad magnets, mains adapter.
Type 140 250 303 546 160
08 1435 LED machine lamp
round eShop eShop – – –
08 1438 LED machine lamp
flat – – eShop eShop –
08 1438_546 08 1439 LED machine lamp
| Ring | – | – | – | – | eShop | |
| Nominal voltage | V | – | – | – | – | 24 |
| Light output | W | 3 | 9 | 12 | 24 | 7.5 |
| Illumination | lm | 300 | 900 | 1200 | 2400 | 08 1439 460 |
| Overall length | mm | 140 | 250 | 303 | 546 | – |
| Overall width | mm | – | – | 40 | 40 | – |
| Overall height | mm | – | – | 39 | 36 | 42 |
| Head ⌀ | mm | 40 | 40 | – | – | – |
| External ⌀ | mm | – | – | – | – | 160 |
| Internal ⌀ | mm | – | – | – | – | 100 |
Discover the new
GARANT GreenPlus workstation lights. The powerful and sustainable GARANT GreenPlus LED workstation lights set the benchmark for modern lighting technology. They provide the ideal conditions for demanding industrial, craft and technical applications. Thanks to their compact and robust design, the lights integrate seamlessly into existing working environments – particularly when combined with GARANT workstations and storage solutions, to which they can be connected harmoniously and effectively. The lights can also be attached directly to machines using magnetic bases.
IP 65
GARANT GreenPlus workplace lights
Innovative, high-quality workplace lights made from recycled aluminium with swan neck and strong magnetic base.
- Can be dimmed between 10% and 100%.
- Non-dazzling and flicker-free.
- Homogeneous illumination.
- Can be connected to 24V machine controller or mains adapter. Note: See No. 081395 and No. 081396 for suitable table clamps and magnetic holders.
NEW NEW NEW NEW NEW NEW
08 1313 08 1314 08 1315 08 1316 08 1317 08 1318
| 08 | Type | FOCUS | SHINE | POINTER | EDGE | BAR | DISC | ||
| 08 1313 | eShop | – | – | – | – | – | |||
| 08 1314 | – | eShop | – | – | – | – | |||
| 08 1315 | – | – | eShop | – | – | – |
GARANT GreenPlus
| 08 1316 | LED workplace light | – | – | – | eShop | – | – | |||
| 08 1317 | – | – | – | – | eShop | – | ||||
| 08 1318 | – | – | – | – | – | eShop | ||||
| Power consumption | W | 2.8 | 5 | 2.9 | 3.7 | 9 | 7.7 | |||
| Illumination | lm | 300 | 400 | 250 | 400 | 800 | 1000 | Application examples |
