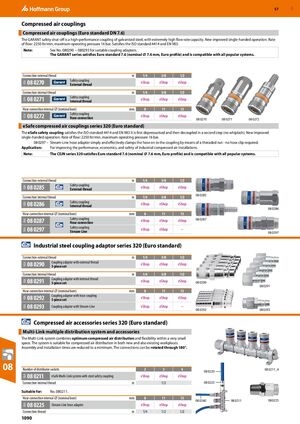

Compressed air couplings
Compressed air couplings (Euro standard DN 7.6)
The GARANT safety shut-off is a high-performance coupling of galvanised steel, with extremely high flow rate capacity. New improved single-handed operation. Rate of flow: 2250 ltr/min, maximum operating pressure 16 bar. Satisfies the ISO standard 4414 and EN 983.
Note: See No. 080290 − 080293 for suitable coupling adapters. The GARANT series satisfies Euro standard 7.6 (nominal ⌀ 7.6 mm, Euro profile) and is compatible with all popular systems.
Connection external thread in 1/4 3/8 1/2
08 0270 Safety coupling
| External thread | eShop | eShop | eShop | ||
| Connection internal thread | in | 1/4 | 3/8 | 1/2 |
08 0271 Safety coupling
| Internal thread | eShop | eShop | eShop | ||
| Hose connection internal ⌀ (nominal bore) | mm | 8 | 11 | 13 |
08 0272 Safety coupling
Hose connection eShop eShop eShop
08 0270 08 0271 08 0272
eSafe compressed air couplings series 320 (Euro standard)
The eSafe safety coupling satisfies the ISO standard 4414 and EN 983 It is first depressurised and then decoupled in a second step (no whiplash). New improved single-handed operation. Rate of flow: 2250 ltr/min, maximum operating pressure 16 bar. 08 0297 – Stream-Line hose adapter simply and effectively clamps the hose on to the coupling by means of a threaded nut - no hose clip required.
Application: For improving the performance, economics, and safety of industrial compressed air installations.
Note: The CEJN series 320 satisfies Euro standard 7.6 (nominal ⌀ 7.6 mm, Euro profile) and is compatible with all popular systems.
Connection external thread in 1/4 3/8 1/2
08 0285 Safety coupling
| External thread | eShop | eShop | eShop | |
| 1/4 | 3/8 | 1/2 | 08 0285 |
Connection internal thread in 08 0286 Safety coupling
| Internal thread | eShop | eShop | eShop | ||
| Hose connection internal ⌀ (nominal bore) | mm | 8 | 11 | 13 |
08 0287 Safety coupling 08 0287
Hose connection eShop eShop eShop
08 0297 Safety coupling
Stream-Line eShop eShop –
Industrial steel coupling adaptor series 320 (Euro standard)
Connection external thread in 1/4 3/8 1/2
08 0290 Coupling adaptor with external thread
| 5-piece set | eShop | eShop | eShop | ||
| Connection internal thread | in | 1/4 | 3/8 | 1/2 |
08 0291 Coupling adaptor with internal thread
| 5-piece set | eShop | eShop | eShop | 08 0290 | ||
| Hose connection internal ⌀ (nominal bore) | mm | 8 | 11 | 13 |
08 0292 Coupling adaptor with hose coupling
| 5-piece set | eShop | eShop | eShop | |
| 08 0293 | Coupling adaptor with Stream-Line | eShop | eShop | – |
08 0292
Compressed air accessories series 320 (Euro standard)
Multi-Link multiple distribution system and accessories
The Multi-Link system combines optimum compressed air distribution and flexibility within a very small space. The system is suitable for compressed air distribution in both new and also existing workplaces. Assembly and installation times are reduced to a minimum. The connections can be rotated through 180°.
08
Number of distributor sockets 2 3 4
08 0220
08 0211 eSafe Multi-Link system with steel safety coupling eShop eShop eShop
Connection internal thread in 1/2 08 0225
Suitable for: No. 080211.
| Hose connection internal ⌀ (nominal bore) | mm | 8 | 11 | 13 | |
| Stream-Line hose adapter | eShop | eShop | eShop | ||
| Connection thread | in | 1/4 | 1/2 | 1/2 |
08 0286
08 0297
08 0291
08 0293
08 0211_4
