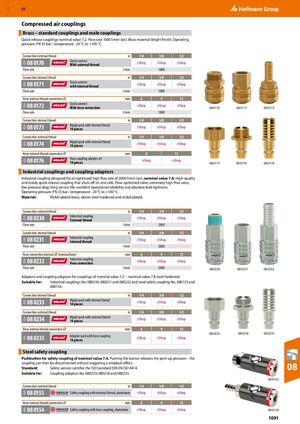

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1091
Навигация
Средства индивидуальной защиты Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Compressed air couplings
Brass – standard couplings and male couplings
Quick-release couplings nominal value 7.2. Flow rate 1000 l/min (air). Brass material (bright finish). Operating pressure: PN 35 bar / temperature: -20 °C to +100 °C.
Connection external thread in 1/4 3/8 1/2
08 0170 Quick connect
With external thread eShop eShop eShop
| Flow rate | l/min | 1000 | |||
| Connection internal thread | in | 1/4 | 3/8 | 1/2 |
08 0171 Quick connect
with internal thread eShop eShop eShop
| Flow rate | l/min | 1000 | ||
| Hose internal thread connection ⌀ | mm | 6 | 9 | 13 |
08 0172 Quick connect
With hose connection eShop eShop eShop
| Flow rate | l/min | 1000 | |||
| Connection internal thread | in | 1/4 | 3/8 | 1/2 |
08 0173 Nipple pack with internal thread
| 10 pieces | eShop | eShop | eShop | ||
| Connection external thread | in | 1/4 | 3/8 | 1/2 |
08 0174 Nipple pack with external thread
10 pieces eShop eShop eShop
Hose internal thread connection ⌀ mm 9 13
08 0176 Hose coupling adaptor set
10 pieces eShop eShop
Industrial couplings and coupling adaptors
Industrial coupling designed for an optimised high flow rate of 2000 l/min (air), nominal value 7.8. High-quality and sturdy quick-release coupling that shuts off on one side. Flow-optimised valve, extremely high flow rates, low pressure drop, long service life, excellent operational reliability and absolute leak-tightness. Operating pressure: PN 35 bar / temperature: -20 °C to +100 °C.
Material: Nickel-plated brass, sleeve steel hardened and nickel-plated.
Connection external thread in 1/4 3/8 1/2
08 0230 Industrial coupling
External thread eShop eShop eShop
| Flow rate | l/min | 2000 | |||
| Connection internal thread | in | 1/4 | 3/8 | 1/2 |
08 0231 Industrial coupling
Internal thread eShop eShop eShop
| Flow rate | l/min | 2000 | ||
| Hose connection internal ⌀ (nominal bore) | mm | 6 | 9 | 13 |
08 0232 Industrial coupling
Hose connection eShop eShop eShop
Flow rate l/min 2000
Adaptors and coupling adaptors for couplings of nominal value 7.2 − nominal value 7.8 steel hardened.
Suitable for: Industrial couplings No. 080230; 080231 and 080232 and steel safety coupling No. 080153 and 080154.
Connection internal thread in 1/4 3/8 1/2
08 0233 Nipple pack with internal thread
| 10 pieces | eShop | eShop | eShop | ||
| Connection external thread | in | 1/4 | 3/8 | 1/2 |
08 0234 Nipple pack with external thread
| 10 pieces | eShop | eShop | eShop | ||
| Hose internal thread connection ⌀ | mm | 6 | 9 | 13 |
08 0235 Adaptor pack with hose coupling
10 pieces eShop eShop eShop
Steel safety coupling
Pushbutton for safety coupling of nominal value 7.4. Pushing the button releases the pent-up pressure – the coupling can then be disconnected without triggering a whiplash effect.
Standard: Safety version satisfies the ISO standard DIN EN ISO 4414.
Suitable for: Coupling adaptors No. 080233; 080234 and 080235.
| Connection external thread | in | 1/4 | 3/8 | 1/2 | ||
| 08 0153 | Safety coupling with external thread, aluminium | eShop | eShop | eShop | ||
| Hose internal thread connection ⌀ | mm | 6 | 9 | 13 | ||
| 08 0154 | Safety coupling with hose coupling, aluminium | eShop | eShop | eShop |
| 08 0170 | 08 0171 | 08 0172 |
| 08 0173 | 08 0174 | 08 0176 |
| 08 0230 | 08 0231 | 08 0232 |
| 08 0233 | 08 0234 | 08 0235 |
08
08 0153
