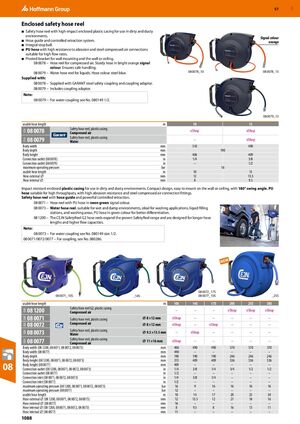

Enclosed safety hose reel
- Safety hose reel with high-impact enclosed plastic casing for use in dirty and dusty environments. Signal colour
- Hose guide and controlled retraction system. orange
- Integral stop ball.
- PU hose with high resistance to abrasion and steel compressed air connections suitable for high flow rates.
- Pivoted bracket for wall mounting and the wall or ceiling. 08 0078 – Hose reel for compressed air. Sturdy hose in bright orange signal
colour. Ensures safe handling.
08 0079 – Water hose reel for liquids. Hose colour steel blue. 08 0078_10 08 0078_15
Supplied with: 08 0078 – Supplied with GARANT steel safety coupling and coupling adaptor. 08 0079 – Includes coupling adaptor.
Note: 08 0079 – For water coupling see No. 080149 1/2.
08 0079_15
usable hose length m 10 15
08 0078 Safety hose reel, plastic casing
Compressed air eShop eShop
08 0079 Safety hose reel, plastic casing
| Water | – | eShop | ||
| Body width | mm | 310 | 490 | |
| Body depth | mm | 190 | ||
| Body height | mm | 406 | 409 | |
| Connection outlet (08 0078) | in | 1/4 | 3/8 | |
| Connection outlet (08 0079) | in | – | 1/2 | |
| maximum operating pressure | bar | 16 | ||
| usable hose length | m | 10 | 15 | |
| Hose external ⌀ | mm | 12 | 13.5 | |
| Hose internal ⌀ | mm | 8 | 9.5 |
Impact resistant enclosed plastic casing for use in dirty and dusty environments. Compact design, easy to mount on the wall or ceiling, with 180° swing angle. PU hose suitable for high throughputs, with high abrasion resistance and steel compressed air connection fittings. Safety hose reel with hose guide and powerful controlled retraction. 08 0071 – Hose reel with PU hose in neon green signal colour. 08 0073 – Water hose reel, suitable for wet and damp environments, ideal for washing applications, liquid filling stations, and washing areas. PU hose in green colour for better differentiation. 08 1200 – The CEJN SafetyReel G2 hose reels expand the proven SafetyReel range and are designed for longer hose lengths and higher flow capacities.
Note: 08 0073 – For water coupling see No. 080149 size 1/2. 08 0071/0072/0077 – For coupling, see No. 080286.
NEW
08 0072_17S
08 0071_10S _14S 08 0077_10S _25S
usable hose length m 10S 14S 17S 20S 25S 30S
08 1200 Safety hose reel G2, plastic casing
| Compressed air | – | – | – | eShop | eShop | eShop | ||
| 08 0071 | ⌀ 8 ×12 mm | eShop | – | – | – | – | – |
Safety hose reel, plastic casing
| 08 0072 Compressed air | ⌀ 8 ×12 mm | eShop | – | eShop | – | – | – | |
| 08 0073 Safety hose reel, plastic casing | ⌀ 9.5 ×13.5 mm | |||||||
| Water | – | eShop | – | – | – | – | ||
| 08 0077 Safety hose reel, plastic casing | ⌀ 11 ×16 mm | |||||||
| Compressed air | eShop | – | – | – | – | – | ||
| Body width (08 1200, 08 0071, 08 0072, 08 0073) | mm | 406 | 490 | 490 | 570 | 570 | 570 | |
| Body width (08 0077) | mm | 490 | – | – | – | – | – | |
| Body depth | mm | 190 | 190 | 190 | 246 | 246 | 246 | |
| 08 Body height (08 1200, 08 0071, 08 0072, 08 0073) | mm | 313 | 409 | 409 | 536 | 536 | 536 | |
| Body height (08 0077) | mm | 409 | – | – | – | – | – | |
| Connection outlet (08 1200, 08 0071, 08 0072, 08 0073) | in | 1/4 | 3/8 | 1/4 | 3/4 | 1/2 | 1/2 | |
| Connection outlet (08 0077) | in | 1/2 | – | – | – | – | – | |
| Connection inlet (08 0071, 08 0072, 08 0073) | in | 1/4 | 3/8 | 1/4 | – | – | – | |
| Connection inlet (08 0077) | in | 1/2 | – | – | – | – | – | |
| maximum operating pressure (08 1200, 08 0071, 08 0072, 08 0073) | bar | 16 | 9 | 16 | 16 | 16 | 16 | |
| maximum operating pressure (08 0077) | bar | 12 | – | – | – | – | – | |
| usable hose length | m | 10 | 14 | 17 | 20 | 25 | 30 | |
| Hose external ⌀ (08 1200, 08 0071, 08 0072, 08 0073) | mm | 12 | 13.5 | 12 | 21 | 18 | 16 | |
| Hose external ⌀ (08 0077) | mm | 16 | – | – | – | – | – | |
| Hose internal ⌀ (08 1200, 08 0071, 08 0072, 08 0073) | mm | 8 | 9.5 | 8 | 16 | 13 | 11 | |
| Hose internal ⌀ (08 0077) | mm | 11 | – | – | – | – | – |
