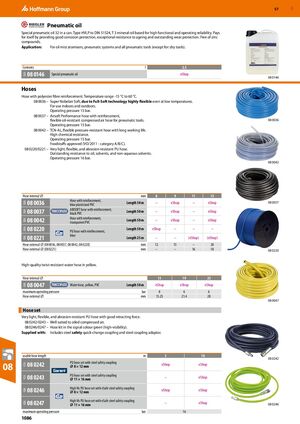

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1086

GBP
57

​ Pneumatic oil
Special pneumatic oil 32 in a can. Type HVLP to DIN 51524, T 3 mineral-oil based for high functional and operating reliability. Pays
for itself by providing good corrosion protection, exceptional resistance to ageing and outstanding wear protection. Free of zinc
compounds.
Application: For oil mist atomisers, pneumatic systems and all pneumatic tools (except for: dry tools).


Contents l 2,5
08 0146
08A


Special pneumatic oil eShop
​ 08 0146

​Hoses
Hose with polyester fibre reinforcement. Temperature range -15 °C to 60 °C.
08 0036 – Super Nobelair Soft, due to Full-Soft technology highly flexible even at low temperatures.
For use indoors and outdoors.
Operating pressure 15 bar.
08 0037 – Airsoft Performance hose with reinforcement,
flexible oil-resistant compressed air hose for pneumatic tools. 08 0036
Operating pressure 15 bar.
08 0042 – TCN-AL, flexible pressure-resistant hose with long working life.
High chemical resistance.
Operating pressure 15 bar.
Foodstuffs approved (VO/2011 - category A/B/C).
08 0220/0221 – Very light, flexible, and abrasion-resistant PU hose.
Outstanding resistance to oil, solvents, and non-aqueous solvents.
Operating pressure 16 bar.
08 0042


Hose internal ⌀ mm 8 9 11 13
Hose with reinforcement,
08 0036 Length 50 m
08A


– eShop – eShop 08 0037
blue plasticised PVC
AIRSOFT hose with reinforcement,
08 0037 Length 50 m
08A


– eShop – eShop
black PVC
Hose with reinforcement,
08 0042 Length 50 m
08A


– eShop – eShop
transparent PVC
08 0220 Length 50 m
08A


eShop – – –
PU hose with reinfrocement,
blue
08 0221 Length 25 m
08A


– – (eShop) (eShop)
Hose external ⌀ (08 0036, 08 0037, 08 0042, 08 0220) mm 12 15 – 20
Hose external ⌀ (08 0221) mm – – 16 18 08 0220

High-quality twist-resistant water hose in yellow.

Hose internal ⌀ 13 19 25
08 0047 Length 50 m
08A


Water hose, yellow, PVC eShop eShop eShop
maximum operating pressure bar 8 6 6
Hose external ⌀ mm 15.25 21.4 28
08 0047
Hose set ​
Very light, flexible, and abrasion-resistant PU hose with good retracting force.
08 0242/0243 – Well suited to oiled compressed air.
08 0246/0247 – Hose kit in the signal colour green (high-visibility).
Supplied with: Includes steel safety quick-change coupling and steel coupling adaptor.


usable hose length m 5 10
08 0242
PU hose set with steel safety coupling
08 0242
08 eShop eShop
01A


⌀ 8 × 12 mm
PU hose set with steel safety coupling
08 0243 – eShop
01A


⌀ 11 × 16 mm
High Vis PU hose set with eSafe steel safety coupling
08 0246
08A


eShop eShop
⌀ 8 × 12 mm
High Vis PU hose set with eSafe steel safety coupling
08 0247
08A


– eShop 08 0246
⌀ 11 × 16 mm
maximum operating pressure bar 16
1086
