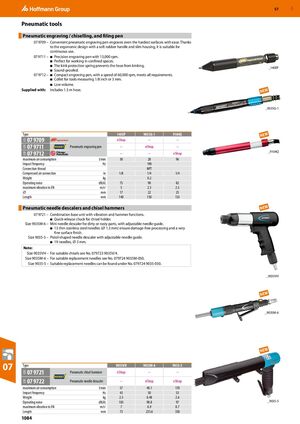

Pneumatic tools
Pneumatic engraving / chiselling, and filing pen
07 9709 – Convenient pneumatic engraving pen engraves even the hardest surfaces with ease. Thanks
to the ergonomic design with a soft rubber handle and slim housing, it is suitable for
continuous use.
07 9711 – ■ Precision engraving pen with 13,000 rpm.
■ Perfect for working in confined spaces.
■ The kink protection spring prevents the hose from kinking.
_140EP
■ Sound-proofed.
07 9712 – ■ Compact engraving pen, with a speed of 60,000 rpm, meets all requirements.
■ Collet for tools measuring 1/8 inch or 3 mm.
■ Low volume.
Supplied with: Includes 1.5 m hose. NEW
_9035G-1
Type 140EP 9035G-1 9104Q NEW
07 9709 eShop – –
03R 03R 03I
07 9711 Pneumatic engraving pen – eShop –
_9104Q
07 9712 – – eShop
maximum air consumption l/min 30 28 96
Impact frequency Hz 190
Connection thread NPT
Compressed air connection in 1/8 1/4 1/4
Weight kg 0.2
Operating noise dB(A) 75 90 82
maximum vibration to EN m/s2 5 2.5 2.5
⌀ mm 17 22 25
Length mm 140 150 133
Pneumatic needle descalers and chisel hammers NEW
07 9721 – Combination base unit with vibration and hammer functions.
■ Quick-release chuck for chisel holder.
Size 9035M-6 – Mini needle descaler for dirty or rusty parts, with adjustable needle guide.
■ 13 thin stainless steel needles (⌀ 1.3 mm) ensure damage-free processing and a very
fine surface finish.
Size 9035-5 – Pistol-shaped needle descaler with adjustable needle guide.
■ 19 needles, ⌀ 3 mm.
Note:
Size 9035VH – For suitable chisels see No. 079723 9035V/4.
Size 9035M-6 – For suitable replacement needles see No. 079724 9035M-050.
Size 9035-5 – Suitable replacement needles can be found under No. 079724 9035-050.
_9035VH
NEW
_9035M-6
NEW
07 Type
07 9721 Pneumatic chisel hammer
9035VH
eShop
9035M-6
–
9035-5
–
03R
07 9722 Pneumatic needle descaler – eShop eShop
03R
maximum air consumption l/min 57 48.1 170
Impact frequency Hz 43 50 53
Weight kg 2.5 0.48 2.6
Operating noise dB(A) 105 98.8 97 _9035-5
maximum vibration to EN m/s2 7 6.9 8.7
Length mm 73 235.6 330
1084
