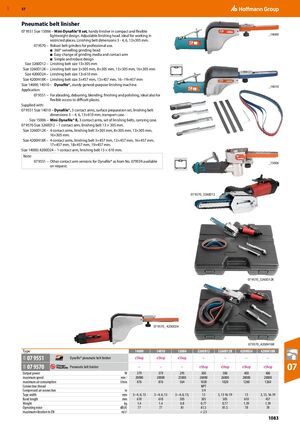

Pneumatic belt linisher
07 9551 Size 15006 – Mini-Dynafile®II set, handy linisher in compact and flexible
lightweight design. Adjustable linishing head. Ideal for working in _14000
restricted places. Linishing belt dimensions 3 - 4, 6, 13×305 mm.
07 9570 – Robust belt grinders for professional use.
■ 360° swivelling grinding head
■ Easy change of grinding media and contact arm
■ Simple and robust design
Size 3260D12 – Linishing belt size 13×305 mm
Size 3260D12K – Linishing belt size 3×305 mm, 8×305 mm, 13×305 mm, 16×305 mm
Size 4200D24 – Linishing belt size 13×610 mm
Size 4200H18K – Linishing belt size 3×457 mm, 13×457 mm, 16−19×457 mm
Size 14000; 14010 – Dynafile®, sturdy general-purpose linishing machine. _14010
Application:
07 9551 – For abrading, deburring, blending, finishing and polishing, ideal also for
flexible access to difficult places.
Supplied with:
07 9551 Size 14010 – Dynafile®, 5 contact arms, surface preparation set, linishing belt
dimensions 3 − 4, 6, 13×610 mm, transport case.
Size 15006 – Mini-Dynafile® II, 3 contact arms, set of linishing belts, carrying case.
07 9570 Size 3260D12 – 1 contact arm, linishing belt 13 × 305 mm.
Size 3260D12K – 4 contact arms, linishing belt 3×305 mm, 8×305 mm, 13×305 mm,
16×305 mm.
Size 4200H18K – 4 contact arms, linishing belt 3×457 mm, 13×457 mm, 16×457 mm,
17×457 mm, 18×457 mm, 19×457 mm.
Size 14000; 4200D24 – 1 contact arm, linishing belt 13 × 610 mm.
Note:
07 9551 – Other contact arm versions for Dynafile® as from No. 079559 available _15006
on request.
07 9570_3260D12
07 9570_3260D12K
07 9570_ 4200D24
07 9570_4200H18K
Type 14000 14010 15006 3260D12 3260D12K 4200D24 4200H18K
07 9551 Dynafile® pneumatic belt linisher eShop eShop eShop – – – –
03R
07 9570 Pneumatic belt linisher – – – eShop eShop eShop eShop
07
03R
Output power W 379 379 295 300 300 400 400
maximum speed min-1 20000 20000 25000 26000 26000 20000 20000
maximum air consumption l/min 876 876 564 1020 1020 1260 1260
Connection thread NPT
Compressed air connection in 1/4
Tape width mm 3−4; 6; 13 3−4; 6; 13 3−4; 6; 13; 13 3, 13 16-19 13 3, 13, 16-19
Band length mm 610 610 305 305 305 610 457
Weight kg 1.4 1.4 0.8 0.77 0.77 1.39 1.39
Operating noise dB(A) 77 77 81 81.5 81.5 78 78
maximum vibration to EN m/s2 < 2.5
1083
