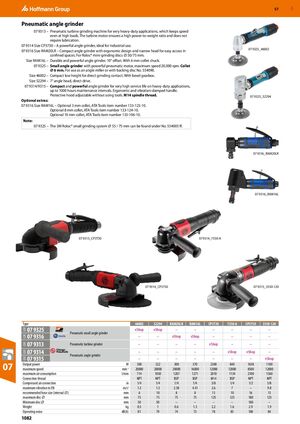

​Pneumatic angle grinder
07 9313 – Pneumatic turbine grinding machine for very heavy-duty applications, which keeps speed
even at high loads. The turbine motor ensures a high power-to-weight ratio and does not
require lubrication.
07 9314 Size CP3750 – A powerful angle grinder, ideal for industrial use.
07 9325_46002
07 9316 Size RAM20LR – Compact angle grinder with ergonomic design and narrow head for easy access in
confined spaces. For Roloc® mini-grinding discs ⌀ 50/75 mm.
Size RAM16L – Durable and powerful angle grinder. 10° offset. With 6 mm collet chuck.
07 9325 – Small angle grinder with powerful pneumatic motor, maximum speed 20,000 rpm. Collet
⌀ 6 mm. For use as an angle miller or with backing disc No. 554090.
Size 46002 – Compact low height for direct grinding contact. With bevel gearbox.
Size 52294 – 7° angle head, direct drive.
07 9314/9315 – Compact and powerful angle grinder for very high service life on heavy-duty applications,
up to 1000 hours maintenance intervals. Ergonomic and vibration-damped handle.
Protective hood adjustable without using tools. M14 spindle thread. 07 9325_52294
Optional extras:
07 9316 Size RAM16L – Optional 3 mm collet, ATA Tools item number 133-123-10.
Optional 8 mm collet, ATA Tools item number 133-124-10.
Optional 10 mm collet, ATA Tools item number 133-106-10.
Note:
07 9325 – The 3M Roloc® small grinding system ⌀ 55 / 75 mm can be found under No. 554005 ff.


07 9316_RAM20LR


07 9316_RAM16L


07 9313_CP3T30 07 9314_7550-A


07 9314_CP3750 07 9315_3550-120


Type 46002 52294 RAM20LR RAM16L CP3T30 7550-A CP3750 3550-120
07 9325 eShop eShop – – – – – –
03R 03R


Pneumatic small angle grinder
07 9316 – – eShop eShop – – – –
07 9313 Pneumatic turbine grinder – – – – eShop – – –
03R


07 9314 – – – – – eShop eShop –
03R 03R


Pneumatic angle grinder
07 9315 – – – – – – – eShop
07 Output power
maximum speed
maximum air consumption
W
min-1
l/min
300
20000
714
522
20000
1050
300
20000
1207
370
16000
1271
2300
12000
2010
840
12000
1134
1638
8500
2100
1100
12000
1560
Connection thread NPT NPT BSP BSP M14 BSP NPT NPT
Compressed air connection in 1/4 1/4 1/4 1/4 3/8 1/4 1/2 3/8
maximum vibration to EN m/s2 1.3 1.3 2.58 4.41 2.6 7 – 9.8
recommended hose size (internal ⌀) mm 6 10 8 8 13 10 16 13
maximum disc ⌀ mm 75 75 75 75 125 125 180 125
Minimum disc ⌀ mm 50 50 – – – – 180 –
Weight kg 0.5 1 0.6 1.3 2.2 1.6 2.9 1.9
Operating noise dB(A) 81 79 74 73 78 85 100 84
