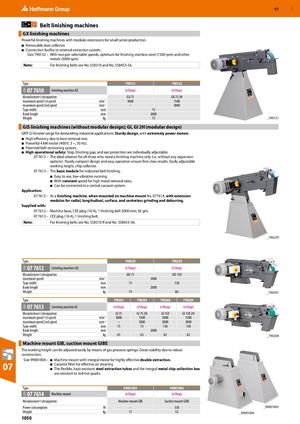

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1050

GBP 57 ​ Belt linishing machines GX linishing machines ​ Powerful linishing machines with modular extensions for small series production. ■ Removable dust collector. ■ Connection facility to external extraction system. Size 790132 – With two pre-selectable speeds, optimum for linishing stainless steel (1500 rpm) and other metals (3000 rpm). Note: For linishing belts see No. 558310 and No. 558453-56. Type 790131 790132 07 7610 03H Linishing machine GX (eShop) (eShop) Manufacturer‘s designation GX 75 GX 75 2H maximum speed 1st speed min-1 3000 1500 maximum speed 2nd speed min-1 – 3000 Tape width mm 75 Band length mm 2000 Weight kg 75 _790131 GIS linishing machines (without modular design); GI, GI 2H (modular design) GRIT GI linisher range for demanding industrial applications: Sturdy design, with extremely power motors. ■ High efficiency due to best removal rate. ■ Powerful 4 kW motor (400 V, 3 ~, 50 Hz). ■ Patented belt-tensioning system, ■ High operational safety: Stop, linishing gap, and eye protection are individually adjustable. 07 7612 – The ideal solution for all those who need a linishing machine only (i.e. without any expansion options). Sturdy compact design and easy operation ensure first-class results. Easily adjustable working height, chip collector. 07 7613 – The basic module for industrial belt linishing. ■ Easy to use, low-vibration running. ■ With constant speed for high metal removal rates. ■ Can be connected to a central vacuum system. Application: 07 7613 – As a linishing machine, when mounted on machine mount No. 077614, with extension modules for radial, longitudinal, surface, and centreless grinding and deburring. Supplied with: 07 7612 – Machine base, CEE plug (16 A), 1 linishing belt 2000 mm; 36 grit. 07 7613 – CEE plug (16 A), 1 linishing belt. Note: For linishing belts see No. 558310 ff and No. 558453-56. _790229 Type 790229 790230 07 7612 03H Linishing machine GIS (eShop) (eShop) Manufacturer‘s designation GIS 75 GIS 150 maximum speed min-1 3000 Tape width mm 75 150 Band length mm 2000 Weight kg 74 86 _790201 Type 790201 790202 790204 790205 07 7613 03H Linishing machine GI (eShop) (eShop) (eShop) (eShop) Manufacturer‘s designation GI 75 GI 75 2H GI 150 GI 150 2H maximum speed 1st speed min-1 3000 1500 3000 1500 maximum speed 2nd speed min-1 – 3000 3000 3000 Tape width mm 75 75 150 150 Band length mm 2000 Weight kg 65 65 82 82 _790204 Machine mount GIB, suction mount GIBE The working height can be adjusted easily by means of gas pressure springs. Great stability due to robust construction. Size 99001004 – ■ Machine mount with integral motor for highly effective double extraction. 07 ■ Cassette filter for effective air cleaning ■ The flexible, heat-resistant steel extraction tubes and the integral metal chip collection box are resistant to red-hot sparks. Type 99001003 99001004 07 7614 03H Machine mount (eShop) (eShop) Manufacturer‘s designation Machine mount GIB Suction mount GIBE Power consumption W – 350 _99001003 Weight kg 17 55 _99001004 1050
