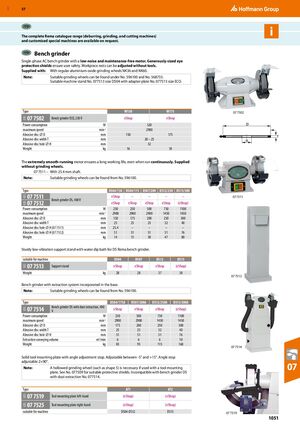

GBP 57 The complete Rema catalogue range (deburring, grinding, and cutting machines) ​ and customised special machines are available on request. ​ Bench grinder Single-phase AC bench grinder with a low-noise and maintenance-free motor. Generously-sized eye protection shields ensure user safety. Workpiece rests can be adjusted without tools. Supplied with: With regular aluminium oxide grinding wheels NK36 and NK60. Note: Suitable grinding wheels can be found under No. 596100 and No. 568733. Suitable machine stand No. 077513 size DS04 with adapter plate No. 077515 size ECO. Type W150 W175 07 7502 07 7502 Bench grinder ECO, 230 V eShop eShop 03S Power consumption W 520 maximum speed min-1 2900 Abrasive disc ⌀ D mm 150 175 Abrasive disc width T mm 20 – 25 Abrasive disc hole ⌀ H mm 32 Weight kg 16 18 The extremely smooth-running motor ensures a long working life, even when run continuously. Supplied without grinding wheels. 07 7511 – With 25.4 mm shaft. Note: Suitable grinding wheels can be found from No. 596100. Type DS04/150 DS04/175 DS07/200 DS12/250 DS15/300 07 7511 eShop – – – – 03S 03S ​07 7511 Bench grinder DS, 400 V 07 7512 eShop eShop eShop eShop (eShop) Power consumption W 250 250 500 730 1100 maximum speed min-1 2900 2900 2900 1450 1450 Abrasive disc ⌀ D mm 150 175 200 250 300 Abrasive disc width T mm 25 25 25 32 40 Abrasive disc hole ⌀ H (07 7511) mm 25.4 – – – – Abrasive disc hole ⌀ H (07 7512) mm 51 51 51 51 76 Weight kg 14 15 30 47 80 Sturdy low-vibration support stand with water dip bath for DS Rema bench grinder. suitable for machine DS04 DS07 DS12 DS15 07 7513 Support stand eShop eShop eShop (eShop) 03S Weight kg 28 28 37 38 ​07 7513 Bench grinder with extraction system incorporated in the base. Note: Suitable grinding wheels can be found from No. 596100. Type DS04/175A DS07/200A DS12/250A DS15/300A Bench grinder DS with dust extraction, 400 07 7514 eShop eShop eShop (eShop) 03S V Power consumption W 250 500 730 1100 maximum speed min-1 2900 2900 1450 1450 Abrasive disc ⌀ D mm 175 200 250 300 Abrasive disc width T mm 25 25 32 40 Abrasive disc hole ⌀ H mm 51 51 51 76 Extraction conveying volume m3/min 6 6 6 10 Weight kg 83 95 115 160 ​07 7514 Solid tool mounting plate with angle adjustment stop. Adjustable between -5° and +15°. Angle stop adjustable 2×90°. Note: A hollowed grinding wheel (such as shape 5) is necessary if used with a tool mounting plate. See No. 077509 for suitable protective shields. Incompatible with bench grinder DS 07 with dust extraction No. 077514. Type AT1 AT2 07 7519 Tool mounting plate left-hand (eShop) (eShop) 03S 07 7525 Tool mounting plate right-hand (eShop) (eShop) 03S suitable for machine DS04-DS12 DS15 ​07 7519​ 1051
