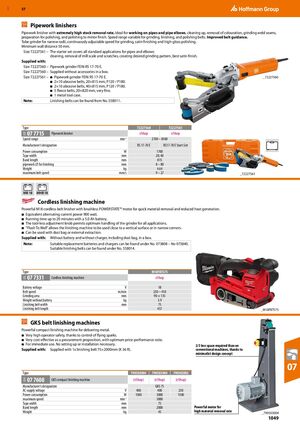

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1049

GBP 57 ​ Pipework linishers Pipework linisher with extremely high stock removal rate. Ideal for working on pipes and pipe elbows, cleaning up, removal of colouration, grinding weld seams, preparation for polishing, and polishing to mirror finish. Speed range variable for grinding, linishing, and polishing belts. Improved belt guidance. Tube grinder for narrow radii, continuously adjustable speed for grinding, satin finishing and high-gloss polishing. Minimum wall distance 50 mm. Size 72227561 – The starter set covers all standard applications for pipes and elbows: cleaning, removal of mill scale and scratches, creating desired grinding pattern, best satin finish. Supplied with: Size 72227560 – Pipework grinder FEIN RS 17-70 E. Size 72227560 – Supplied without accessories in a box. Size 72227561 – ■ Pipework grinder FEIN RS 17-70 E. _72227560 ■ 2×10 abrasive belts, 20×815 mm, P120 / P180. ■ 2×10 abrasive belts, 40×815 mm, P120 / P180. ■ 5 fleece belts, 20×820 mm, very fine. ■ 1 metal tool case. Note: Linishing belts can be found from No. 558011. Type 72227560 72227561 07 7715 Pipework linisher eShop eShop 03F Speed range min-1 2700 – 8500 Manufacturer‘s designation RS 17-70 E RS17-70 E Start-Set Power consumption W 1700 Tape width mm 20; 40 Band length mm 815 pipework ⌀ for linishing mm 8 – 80 Weight kg 4.64 maximum belt speed mm/s 9 – 27 _72227561 MB 18 MHB 18 Cordless linishing machine Powerful M18 cordless belt linisher with brushless POWERSTATE™ motor for quick material removal and reduced heat generation. ■ Equivalent alternating current power 900 watt. ■ Running time up to 20 minutes with a 5.0 Ah battery. ■ The tool-less adjustment knob permits optimum handling of the grinder for all applications. ■ “Flush To Wall” allows the linishing machine to be used close to a vertical surface or in narrow corners. ■ Can be used with dust bag or external extraction. Supplied with: Without battery and without charger, including dust bag, in a box. Note: Suitable replacement batteries and chargers can be found under No. 073808 – No 073840. Suitable linishing belts can be found under No. 558014. Type M18FBTS75 07 7331 Cordless linishing machine eShop 03L ​ ​ Battery voltage V 18 Belt speed m/min 230 – 410 Grinding area mm 90 × 135 Weight without battery kg 3.9 Linishing belt width mm 75 Linishing belt length 457 _M18FBTS75 ​ GKS belt linishing machines Powerful compact linishing machine for deburring metal. ■ Very high operator safety, thanks to control of flying sparks. ■ Very cost-effective as a procurement proposition, with optimum price-performance ratio. ■ For immediate use. No setting up or installation necessary. 2/3 less space required than on Supplied with: Supplied with 1x linishing belt 75×2000mm (K 36 R). conventional machines, thanks to minimalist design concept Type 790502004 790503004 790502002 07 07 7608 03H GKS compact linishing machine (eShop) (eShop) (eShop) Manufacturer‘s designation GKS 75 AC supply voltage V 400 400 230 Power consumption W 1500 3000 1500 maximum speed min-1 3000 Tape width mm 75 Band length mm 2000 Powerful motor for Weight kg 45 high material removal rate _790503004 1049
