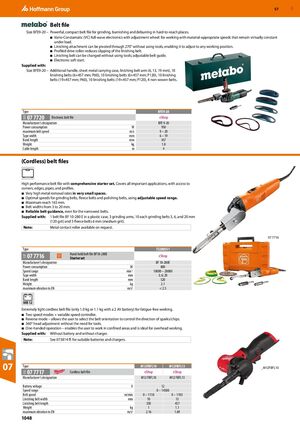

GBP 57 ​ Belt file Size BFE9-20 – Powerful, compact belt file for grinding, burnishing and deburring in hard-to-reach places. ■ Vario-Constamatic (VC) full-wave electronics with adjustment wheel: for working with material-appropriate speeds that remain virtually constant under load. ■ Linishing attachment can be pivoted through 270° without using tools, enabling it to adjust to any working position. ■ Profiled drive roller: reduces slipping of the linishing belt. ■ Linishing belt can be changed without using tools; adjustable belt guide. ■ Electronic soft start. Supplied with: Size BFE9-20 – Additional handle, sheet metal carrying case, linishing belt arm (6, 13, 19 mm), 10 linishing belts (6×457 mm; P60), 10 linishing belts (6×457 mm; P120), 10 linishing belts (19×457 mm; P60), 10 linishing belts (19×457 mm; P120), 4 non-woven belts. Type BFE9-20 07 7720 03D Electronic belt file eShop Manufacturer‘s designation BFE 9-20 Power consumption W 950 maximum belt speed m/s 9 – 20 Tape width mm 6 – 19 Band length mm 457 Weight kg 1.8 Cable length m 4 ​(Cordless) belt files High performance belt file with comprehensive starter set. Covers all important applications, with access to corners, edges, pipes, and profiles. ■ Very high metal removal rates in very small spaces. ■ Optimal speeds for grinding belts, fleece belts and polishing belts, using adjustable speed range. ■ Maximum reach 165 mm. ■ Belt widths from 3 to 20 mm. ■ Reliable belt guidance, even for the narrowest belts. Supplied with: 1 belt file BF 10-280 E in a plastic case, 3 grinding arms, 10 each grinding belts 3, 6, and 20 mm (120 grit) and 5 fleece belts 6 mm (medium grit). Note: Metal contact roller available on request. 07 7716 Type 72280551 Hand-held belt file BF10-280E 07 7716 eShop 03F Starter set Manufacturer‘s designation BF 10-280E Power consumption W 800 Speed range min-1 10000 – 28000 Tape width mm 3; 6; 20 Band length mm 520 Weight kg 2.1 maximum vibration to EN m/s2 < 2.5 MB 12 Extremely light cordless belt file (only 1.0 kg or 1.1 kg with a 2 Ah battery) for fatigue-free working. ■ Two speed modes + variable speed controller. ■ Reverse mode – allows the user to select the belt orientation to control the direction of sparks/chips. ■ 360° head adjustment without the need for tools. ■ One-handed operation – enables the user to work in confined areas and is ideal for overhead working. Supplied with: Without battery and without charger. Note: See 073814 ff. for suitable batteries and chargers. 07 Type 07 7717 Cordless belt file M12FBFL10 eShop M12FBFL13 eShop _M12FBFL10 03L Manufacturer‘s designation M12 FBFL10 M12 FBFL13 ​ ​ Battery voltage V 12 Speed range 0 – 14500 Belt speed m/min 0 – 1110 0 – 1105 Linishing belt width mm 10 13 Linishing belt length 330 457 Weight kg 1 1.1 maximum vibration to EN m/s2 2.16 1.69 1048
