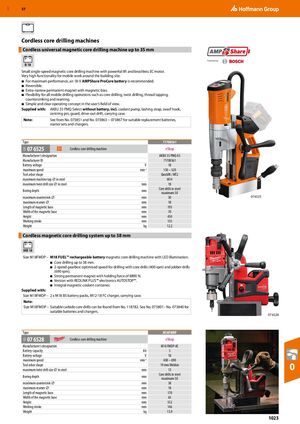

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 1023

GBP 57 ​Cordless core drilling machines Cordless universal magnetic core drilling machine up to 35 mm ​ B 18 Small single-speed magnetic core drilling machine with powerful lift and brushless EC motor. Very high functionality for mobile work around the building site. ■ For maximum performance, an 18-V AMPShare ProCore battery is recommended. ■ Reversible. ■ Extra-narrow permanent magnet with magnetic bias. ■ Flexibility for all mobile drilling operations such as core drilling, twist drilling, thread tapping, countersinking and reaming. ■ Simple and clear operating concept in the user’s field of view. Supplied with: AKBU 35 PMQ Select without battery, incl. coolant pump, lashing strap, swarf hook, centring pin, guard, drive-out drift, carrying case. Note: See from No. 073851 and No. 073863 − 073867 for suitable replacement batteries, starter sets and chargers. Type 71700361 07 6525 Cordless core drilling machine eShop 03F Manufacturer‘s designation AKBU 35 PMQ AS Manufacturer ID 71700361 Battery voltage V 18 maximum speed min-1 130 – 520 Tool arbor shape QuickIN / MT2 maximum machine tap ⌀ in steel M14 maximum twist drill size ⌀ in steel mm 18 Core drills in steel Boring depth mm maximum 50 maximum countersink ⌀ mm 30 07 6525 maximum reamer ⌀ mm 18 Length of magnetic base mm 195 Width of the magnetic base mm 70 Height mm 450 Working stroke mm 135 Weight kg 12.2 Cordless magnetic core drilling system up to 38 mm ​ MB 18 Size M18FMDP – M18 FUEL™ rechargeable battery magnetic core drilling machine with LED illumination. ■ Core drilling up to 38 mm. ■ 2-speed gearbox: optimised speed for drilling with core drills (400 rpm) and jobber drills (690 rpm). ■ Strong permanent magnet with holding force of 8890 N. ■ Version with REDLINK PLUS™ electronics AUTOSTOP™. ■ Integral magnetic coolant container. Supplied with: Size M18FMDP – 2 x M18 B5 battery packs, M12-18 FC charger, carrying case. Note: Size M18FMDP – Suitable carbide core drills can be found from No. 118782. See No. 073801– No. 073840 for suitable batteries and chargers. 07 6528 Type M18FMDP 07 6528 Cordless core drilling machine eShop 03L Manufacturer‘s designation M18 FMDP-0C Battery capacity Ah 5 Battery voltage V 18 maximum speed min-1 400 – 690 Tool arbor shape maximum twist drill size ⌀ in steel mm 19 mm Weldon 13 0 Core drills in steel Boring depth mm maximum 50 maximum countersink ⌀ mm 38 maximum reamer ⌀ mm 18 Length of magnetic base mm 170 Width of the magnetic base mm 65 Height mm 552 Working stroke mm 146 Weight kg 13.9 1023
