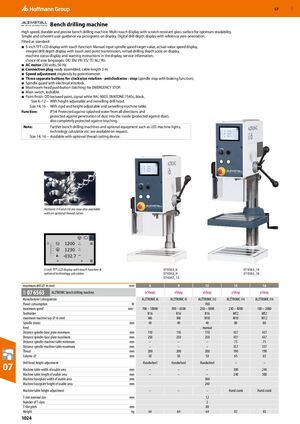

GBP 57 ​ Bench drilling machine High-speed, durable and precise bench drilling machine. Multi-touch display with scratch-resistant glass surface for optimum readability. Simple and coherent user guidance via pictograms on display. Digital drill depth display with reference zero orientation. Fitted as standard: ■ 5-inch TFT LCD display with touch function: Manual input spindle speed target value, actual value speed display, integral drill depth display with touch zero point transmission, virtual drilling depth scale on display, machine status display and warning instructions in the display, service information, choice of user languages: DE/ EN/ FR/ ES/ IT/ NL/ RU. ■ AC motor 230 volts, 50 Hz. ■ Connection plug ready assembled, cable length 3 m. ■ Speed adjustment steplessly by potentiometer. ■ Three separate buttons for clockwise rotation - anticlockwise - stop (spindle stop with braking function). ■ Spindle guard with electrical interlock. ■ Mushroom-head pushbutton (latching) for EMERGENCY STOP. ■ Main switch, lockable. ■ Paint finish: DD textured paint, signal white RAL 9003, PANTONE 7545c, black. Size 6–12 – With height-adjustable and swivelling drill head. Size 14; 16 – With rigid and height-adjustable and swivelling machine table. Function: IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside (protected against dust), also completely protected against touching. Note: Further bench drilling machines and optional equipment such as LED machine lights, technology calculator etc. are available on request. Size 14; 16 – Available with optional thread cutting device. Alztronic i14 and i16 are now also available with an optional thread cutter. 5 inch TFT LCD display with touch function & 07 6563_6 07 6563_14 optional technology calculator. 07 6563_9 07 6563_16 07 6563_12 maximum drill ⌀ in steel mm 6 9 12 14 16 07 6563 ALZTRONIC bench drilling machine (eShop) eShop eShop eShop eShop 03P Manufacturer‘s designation ALZTRONIC i6 ALZTRONIC i9 ALZTRONIC i12 ALZTRONIC i14 ALZTRONIC i16 Power consumption W 700 maximum speed min-1 700 – 10000 390 – 6500 250 – 5000 230 – 4000 100 – 2000 Toolholder B16 B16 B16 MT2 MT2 maximum machine tap ⌀ in steel M6 M8 M10 M10 M12 Spindle stroke mm 40 40 40 80 80 Feed manual Distance spindle-base plate minimum mm 110 110 110 437 437 Distance spindle-base plate maximum mm 250 250 250 437 437 Distance spindle-machine table minimum mm – – – 75 75 Distance spindle-machine table maximum mm – – – 357 357 Throat mm 200 200 200 190 190 Column ⌀ mm 50 50 50 65 65 Drill head height adjustment Handwheel Handwheel Handwheel – – 07 Machine table width of usable area mm – – – 300 240 Machine table length of usable area mm – – – 240 300 Machine baseplate width of usable area mm 300 Machine baseplate height of usable area mm 240 Machine table height adjustment – – – Hand crank Hand crank T-slot nominal size mm 12 Number of T-slots 2 T-slot pitch mm 80 Weight kg 64 64 64 83 83 1024
