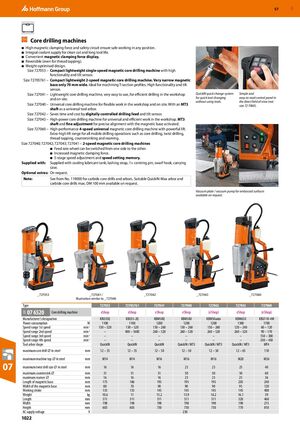

GBP 57 Core drilling machines ■ High magnetic clamping force and safety circuit ensure safe working in any position. ■ Integral coolant supply for clean cut and long tool life. ■ Convenient magnetic clamping force display. ■ Reversible (even for thread tapping). ■ Weight-optimised design. Size 727053 – Compact lightweight single-speed magnetic core drilling machine with high functionality and tilt sensor. Size 72705761 – Compact lightweight 2-speed magnetic core drilling machine. Very narrow magnetic base only 70 mm wide. Ideal for machining T-section profiles. High functionality and tilt sensor. Size 727041 – Lightweight core drilling machine, very easy to use, for efficient drilling in the workshop QuickIN quick change system Simple and and on site. for quick tool changing easy-to read control panel in without using tools. the direct field of view (not Size 727040 – Universal core drilling machine for flexible work in the workshop and on site. With an MT3 size 72 7060). shaft as a universal tool arbor. Size 727042 – Saves time and cost by digitally controlled drilling feed and tilt sensor. Size 727043 – High-power core drilling machine for universal and efficient work in the workshop. MT3 shaft and fine adjustment for precise alignment with the magnetic base activated. Size 727060 – High-performance 4-speed universal magnetic core drilling machine with powerful lift. Extra-high lift range for all mobile drilling operations such as core drilling, twist drilling, thread tapping, countersinking and reaming. Size 727040; 727042; 727043; 727041 – 2-speed magnetic core drilling machines ■ Feed rate wheel can be switched from one side to the other. ■ Increased magnetic clamping force. ■ 5-stage speed adjustment and speed setting memory. Supplied with: Supplied with cooling lubricant tank, lashing strap, 1× centring pin, swarf hook, carrying case. Optional extras: On request. Note: See from No. 119000 for carbide core drills and arbors. Suitable QuickIN-Max arbor and carbide core drills max. DM 100 mm available on request. Vacuum plate / vacuum pump for embossed surfaces available on request. _727053 _727041 / _727042 _727043 _727060 Illustration similar to _727040 Type 727053 72705761 727041 727040 727042 727043 727060 07 6520 Core drilling machine eShop eShop eShop eShop (eShop) eShop (eShop) 03F Manufacturer‘s designation KBU35Q KBU35-2Q KBM50Q KBM50U KBM50auto KBM65U KBU110-4M Power consumption W 1100 1100 1200 1200 1200 1300 1700 Speed range 1st speed min-1 130 – 520 130 – 520 130 – 260 130 – 260 130 – 260 120 – 240 60 – 120 Speed range 2nd speed min-1 – 400 – 1600 260 – 520 260 – 520 260 – 520 260 – 520 90 – 170 Speed range 3rd speed min-1 – – – – – – 150 – 300 Speed range 4th speed min-1 – – – – – – 230 – 430 Tool arbor shape QuickIN QuickIN QuickIN QuickIN / MT3 QuickIN / MT3 QuickIN / MT3 MT4 maximum core drill ⌀ in steel mm 12 – 35 12 – 35 12 – 50 12 – 50 12 – 50 12 – 65 110 maximum machine tap ⌀ in steel mm M14 M14 M16 M16 M16 M20 M36 07 maximum twist drill size ⌀ in steel maximum countersink ⌀ mm mm 16 31 16 31 16 31 23 50 23 50 25 50 40 60 maximum reamer ⌀ mm 16 16 16 23 23 25 36 Length of magnetic base mm 175 186 195 195 195 205 240 Width of the magnetic base mm 80 70 90 90 90 95 120 Working stroke mm 135 135 145 145 145 145 400 Weight kg 10.6 11 13.2 13.9 16.2 16.1 39 Length mm 311 311 311 311 311 320 460 Width mm 198 198 198 198 198 198 215 Height mm 603 603 730 730 730 770 810 AC supply voltage V 230 1022
