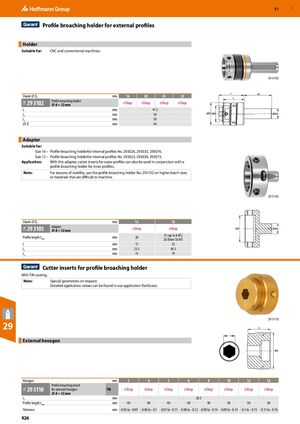

GBP 57 ​ Profile broaching holder for external profiles Holder ​ Suitable for: CNC and conventional machines. 29 3102 L1 Shank ⌀ DS mm 16 20 25 32 L Profile broaching holder 29 3102 eShop eShop eShop eShop 29K ⌀ d = 32 mm L mm 41.5 L1 mm 50 L s mm 50 ⌀ D mm 44 Adapter ​ Suitable for: Size 16 – Profile broaching holderfor internal profiles No. 293026, 293033, 293076. Size 12 – Profile broaching holderfor internal profiles No. 293023, 293030, 293073. Application: With this adapter, cutter inserts for outer profiles can also be used in conjunction with a profile broaching holder for inner profiles. Note: For reasons of stability, use the profile broaching holder No. 293102 on higher batch sizes or materials that are difficult to machine. 29 3105 Shank ⌀ Ds mm 12 16 Adapter 29 3105 eShop eShop 29K ⌀ d = 32 mm 31 (up to 8 AF); Profile length tmax mm 20 20 (from 10 AF) L mm 17 32 L1 mm 25.5 40.5 Ls mm 15 19 ​ Cutter inserts for profile broaching holder With TiN coating. Note: Special geometries on request. Detailed application values can be found in our application ToolScout. 29 3110 29 External hexagon ​ Hexagon mm 3 4 5 6 8 10 12 14 Profile broaching insert 29 3110 for external hexagon TiN eShop eShop eShop eShop eShop eShop eShop eShop 29L ⌀ d = 32 mm L1 mm 20.5 Profile length tmax mm 40 40 40 40 30 30 30 30 Tolerance mm - 0.05 to - 0.09 - 0.06 to - 0.1 - 0.07 to - 0.11 - 0.08 to - 0.12 - 0.09 to - 0.14 - 0.09 to - 0.14 - 0.1 to - 0.15 - 0.11 to - 0.16 926
