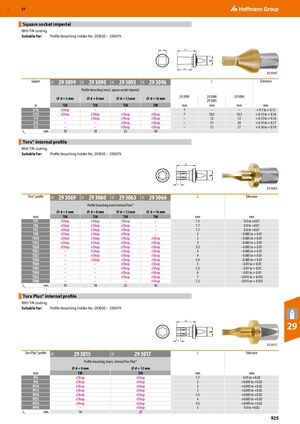

GBP 57 Square socket imperial ​ With TiN coating. Suitable for: Profile broaching holder No. 293020 − 293079. 29 3093 Square 29 3099 29 3090 29 3093 29 3096 L Tolerance 29L 29L 29L 29L Profile broaching insert, square socket imperial 29 3099 29 3090 29 3096 ​ ⌀ d = 5 mm ⌀ d = 8 mm ⌀ d = 12 mm ⌀ d = 16 mm 29 3093 in TiN TiN TiN TiN mm mm mm mm 3/16 eShop – – – 7 – – + 0.1 to + 0.13 7/32 eShop eShop eShop eShop 7 10.5 10.5 + 0.13 to + 0.16 1/4 – eShop eShop eShop – 12 12 + 0.13 to + 0.16 3/8 – – eShop eShop – 21 20 + 0.14 to + 0.17 1/2 – – eShop eShop – 21 27 + 0.16 to + 0.19 L1 mm 10 18 25 40 ​ ​ ​ ​ Torx® internal profile ​ With TiN coating. Suitable for: Profile broaching holder No. 293020 − 293079. 29 3063 Torx® profile 29 3069 29 3060 29 3063 29 3066 L Tolerance 29L 29L 29L 29L Profile broaching insert internal Torx® ⌀ d = 5 mm ⌀ d = 8 mm ⌀ d = 12 mm ⌀ d = 16 mm mm TiN TiN TiN TiN mm mm TX5 eShop eShop eShop – 1.5 0.0 to +0.01 TX6 eShop eShop eShop – 1.7 0.0 to +0.01 TX7 eShop eShop eShop – 1.7 0.0 to +0.01 TX8 eShop eShop eShop – 2 - 0.005 to + 0.01 TX10 eShop eShop eShop eShop 2 - 0.005 to + 0.01 TX15 eShop eShop eShop eShop 3 - 0.005 to + 0.01 TX20 eShop eShop eShop eShop 3.5 - 0.005 to + 0.01 TX25 – eShop eShop eShop 4 - 0.005 to + 0.01 TX27 – eShop eShop eShop 4 - 0.005 to + 0.01 TX30 – eShop eShop eShop 4.5 - 0.005 to + 0.01 TX40 – – eShop eShop 5 - 0.01 to + 0.01 TX45 – – eShop eShop 5.5 - 0.01 to + 0.01 TX50 – – eShop eShop 6 - 0.01 to + 0.01 TX55 – – eShop eShop 7 - 0.015 to + 0.015 TX60 – – – eShop 7.5 - 0.015 to + 0.015 L1 mm 10 18 25 40 ​ ​ Torx Plus® internal profile ​ With TiN coating. Suitable for: Profile broaching holder No. 293020 − 293079. 29 29 3015 Torx Plus® profile 29 3015 29 3017 L Tolerance 29L 29L Profile broaching insert, internal Torx Plus® ⌀ d = 8 mm ⌀ d = 12 mm mm TiN TiN mm mm IP6 eShop eShop 1.7 0.01 to +0.02 IP8 eShop eShop 2 +0.005 to +0.02 IP10 eShop eShop 2 +0.005 to +0.02 IP15 eShop eShop 3 +0.005 to +0.02 IP20 eShop eShop 3.5 +0.005 to +0.02 IP25 eShop eShop 4 +0.005 to +0.02 IP30 eShop eShop 4.5 +0.005 to +0.02 IP40 – eShop 5 0.0 to +0.02 L1 mm 18 25 ​ ​ 925
