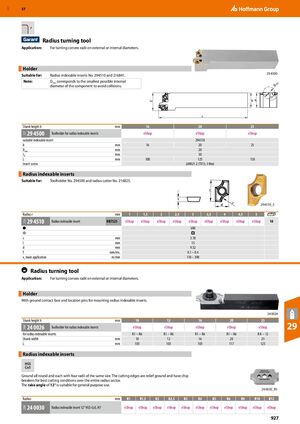

GBP 57 r Radius turning tool Application: For turning convex radii on external or internal diameters. Holder ​ ​ 29 4500 Suitable for: Radius indexable inserts No. 294510 and 216841. Note: Dmin corresponds to the smallest possible internal in diameter of the component to avoid collisions. m Shank height h mm 16 20 25 29 4500 Toolholder for radius indexable inserts eShop eShop eShop 21T suitable indexable insert 294510 b mm 16 20 25 Dmin mm 20 L4 mm 30 L mm 100 125 150 Insert screw 269021 2 (TX15; 3 Nm) Radius indexable inserts ​ Suitable for: Toolholder No. 294500 and radius cutter No. 216825. 29 4510_5 Radius r mm 1 1,5 2 2,5 3 3,5 4 4,5 5 29 4510 Radius indexable insert HB7525 eShop eShop eShop eShop eShop eShop eShop eShop eShop 10 21A UNI ​ ​ ​ s mm 3.18 ​ l mm 15 ​ d mm 9.52 ​ f mm/rev. 0.1 – 0.4 ​ vc main application m/min 110 – 390 ​ ​ Radius turning tool Application: For turning convex radii on external or internal diameters. Holder ​ With ground contact face and location pins for mounting radius indexable inserts. 24 0026 Shank height h mm 10 12 16 20 25 24 0026 29 29W Toolholder for radius indexable inserts eShop eShop eShop eShop eShop for radius indexable inserts R1 − R6 R1 − R6 R1 − R6 R1 − R6 R 8 − 12 Shank width mm 10 12 16 20 25 L mm 103 103 103 117 125 Radius indexable inserts ​ HSS Co5 Ground all round and each with four radii of the same size. The cutting edges are relief ground and have chip breakers for best cutting conditions over the entire radius sector. The rake angle of 12° is suitable for general purpose use. 24 0030_R5 Radius mm R1 R1,5 R2 R2,5 R3 R4 R5 R6 R8 R10 R12 24 0030 29W Radius indexable insert 12° HSS-Co5, H7 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 927
