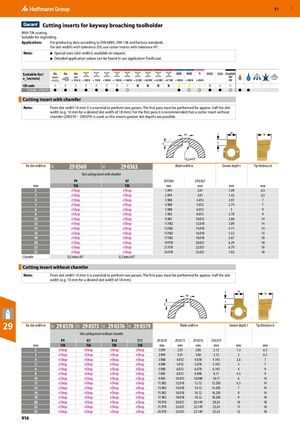

GBP 57 ​ Cutting inserts for keyway broaching toolholder With TiN coating. Suitable for regrinding. Application: For producing slots according to DIN 6885, DIN 138 and factory standards. For slot widths with tolerance JS9, use cutter inserts with tolerance H7. Note: ■ Special sizes (slot widths) available on request. ■ Detailed application values can be found in our application ToolScout. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N N ​ ​ ​ ​ ​ 29 0360–​29 0379 ● ● ● ● ● ● ● ○ ● ○ ○ ● ● ○ ● ● Cutting insert with chamfer ​ Note: From slot width 16 mm it is essential to perform two passes. The first pass must be performed for approx. half the slot width (e.g. 10 mm for a desired slot width of 18 mm). For the first pass it is recommended that a cutter insert without chamfer (290370 – 290379) is used, as this means greater slot depths are possible. w m b t t 0,2x45° for slot width m 29 0360 29 0363 Blade width w Groove depth t Tip thickness b 29L 29L Slot cutting insert with chamfer P9 H7 29 0360 29 0363 ​ ​ mm TiN TiN mm mm mm mm 2 eShop eShop 1.994 2.01 1.09 6.5 3 eShop eShop 2.994 3.01 1.42 6.5 4 eShop eShop 3.988 4.012 2.07 7 5 eShop eShop 4.988 5.012 2.74 7 6 eShop eShop 5.988 6.012 3 9 8 eShop eShop 7.985 8.015 3.78 9 10 eShop eShop 9.985 10.015 3.88 14 12 eShop eShop 11.982 12.018 3.89 14 14 eShop eShop 13.982 14.018 4.71 14 16 eShop eShop 15.982 16.018 5.53 14 18 eShop eShop 17.982 18.018 5.67 18 20 eShop eShop 19.978 20.021 6.29 18 22 eShop eShop 21.978 22.021 6.79 18 25 eShop eShop 24.978 25.021 7.02 18 Chamfer 0.2 mm×45° 0.2 mm×45° ​ ​ ​ ​ Cutting insert without chamfer ​ Note: From slot width 16 mm it is essential to perform two passes. The first pass must be performed for approx. half the slot width (e.g. 10 mm for a desired slot width of 18 mm). w m b t t 29 for slot width m 29 0370 29 0373 29 0376 29 0379 Blade width w Groove depth t Tip thickness b 29L 29L 29L 29L Slot cutting insert without chamfer P9 H7 D10 C11 29 0370 29 0373 29 0376 29 0379 ​ ​ mm TiN TiN TiN TiN mm mm mm mm mm mm 2 eShop eShop eShop eShop 1.994 2.01 2.06 2.12 1.3 6.5 3 eShop eShop eShop eShop 2.994 3.01 3.06 3.12 2 6.5 4 eShop eShop eShop eShop 3.988 4.012 4.078 4.145 2.6 7 5 eShop eShop eShop eShop 4.988 5.012 5.078 5.145 3 7 6 eShop eShop eShop eShop 5.988 6.012 6.078 6.145 4 9 8 eShop eShop eShop eShop 7.985 8.015 8.098 8.17 4.5 9 10 eShop eShop eShop eShop 9.985 10.015 10.098 10.17 6 14 12 eShop eShop eShop eShop 11.982 12.018 12.12 12.205 6.5 14 14 eShop eShop eShop eShop 13.982 14.018 14.12 14.205 7 14 16 eShop eShop eShop eShop 15.982 16.018 16.12 16.205 8 14 18 eShop eShop eShop eShop 17.982 18.018 18.12 18.205 9 18 20 eShop eShop eShop eShop 19.978 20.021 20.149 20.24 10 18 22 eShop eShop eShop eShop 21.978 22.021 22.149 22.24 11 18 25 eShop eShop eShop eShop 24.978 25.021 25.149 25.24 12 18 916
