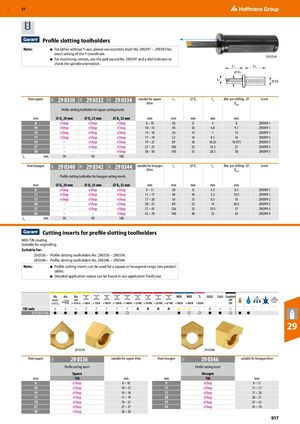

GBP 57 Profile slotting toolholders Note: ■ For lathes without Y-axis, please use eccentric bush No. 290391 − 290393 for exact setting of the Y-coordinate. 29 0334 ■ For machining centres, use the pull-up aid No. 290397 and a dial indicator to check the spindle orientation. L1 LS ⌀ D1 L3 ⌀ DS from square 29 0330 29 0332 29 0334 suitable for square L1 ⌀ D1 L3 Min. pre-drilling -⌀ Screw 29K 29K 29K drive Dmin Profile slotting toolholder for square cutting inserts mm ⌀ DS 20 mm ⌀ DS 25 mm ⌀ DS 32 mm mm mm mm mm mm ​ 8 eShop eShop eShop 8 – 10 30 8 4 8 290399 1 10 eShop eShop eShop 10 – 13 40 10 4.8 9.1 290399 1 14 eShop eShop eShop 14 – 16 50 13 7 13 290399 1 17 eShop eShop eShop 17 – 19 52 16 8.5 16 290399 3 19 – eShop eShop 19 – 27 89 18 10.25 18.975 290399 3 27 – eShop eShop 27 – 37 100 25 14.5 27 290399 3 38 – – eShop 38 – 50 140 35 20.5 38 290399 3 Ls mm 50 90 100 ​ ​ ​ ​ ​ ​ from hexagon 29 0340 29 0342 29 0344 suitable for hexagon L1 ⌀ D1 L3 Min. pre-drilling -⌀ Screw 29K 29K 29K drive Dmin Profile slotting toolholder for hexagon cutting inserts mm ⌀ DS 20 mm ⌀ DS 25 mm ⌀ DS 32 mm mm mm mm mm mm ​ 9 eShop eShop eShop 9 – 11 30 8 4.5 8.5 290399 1 11 eShop eShop eShop 11 – 17 40 10 5.5 10.5 290399 1 17 eShop eShop eShop 17 – 28 56 15 8.5 16 290399 2 28 – eShop eShop 28 – 37 89 25 14 26.5 290399 3 37 – eShop eShop 37 – 45 126 35 19.5 37 290399 3 45 – – eShop 45 – 70 140 40 23 43 290399 4 Ls mm 50 90 100 ​ ​ ​ ​ ​ ​ ​ Cutting inserts for profile slotting toolholders With TiN coating. Suitable for regrinding. Suitable for: 29 0336 – Profile slotting toolholders No. 290330 − 290334. 29 0346 – Profile slotting toolholders No. 290340 − 290344. Note: ■ Profile cutting inserts can be used for a square or hexagonal range (see product table). ■ Detailed application values can be found in our application ToolScout. ​ ISO code N N N P P P P P H H H H M M S K N N ​ ​ ​ ​ ​ 29 0336/​0346 ● ● ● ● ● ● ● ○ ● ○ ○ ● ● ○ ● ● 29 29 0336 29 0346 from square 29 0336 suitable for square drive from hexagon 29 0346 suitable for hexagon drive 29L 29L Profile cutting insert Profile cutting insert Square Hexagon mm TiN mm mm TiN mm 8 eShop 8 – 10 9 eShop 9 – 11 10 eShop 10 – 13 11 eShop 11 – 17 14 eShop 14 – 16 17 eShop 17 – 28 17 eShop 17 – 19 28 eShop 28 – 37 19 eShop 19 – 27 37 eShop 37 – 45 27 eShop 27 – 37 45 eShop 45 – 70 38 eShop 38 – 50 917
