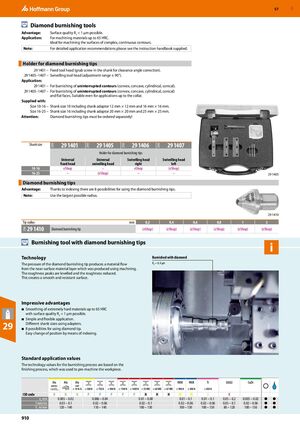

GBP 57 ​ Diamond burnishing tools Advantage: Surface quality Rz < 1 µm possible. Application: For machining materials up to 65 HRC. Ideal for machining the surfaces of complex, continuous contours. Note: For detailed application recommendations please see the instruction handbook supplied. Holder for diamond burnishing tips ​ 29 1401 – Fixed tool head (grub screw in the shank for clearance angle correction). 29 1405–1407 – Swivelling tool head (adjustment range ± 90°). Application: 29 1401 – For burnishing of uninterrupted contours (convex, concave, cylindrical, conical). 29 1405–1407 – For burnishing of uninterrupted contours (convex, concave, cylindrical, conical) and flat faces. Suitable even for applications up to the collar. Supplied with: Size 10-16 – Shank size 10 including shank adaptor 12 mm × 12 mm and 16 mm × 16 mm. Size 16-25 – Shank size 16 including shank adaptor 20 mm × 20 mm and 25 mm × 25 mm. Attention: Diamond burnishing tips must be ordered separately! Shank size 29 1401 29 1405 29 1406 29 1407 29M 29M 29M 29M Holder for diamond burnishing tips Universal Universal Swivelling head Swivelling head fixed head swivelling head right left 10-16 eShop – eShop (eShop) 16-25 – (eShop) – – 29 1405 Diamond burnishing tips ​ Advantage: Thanks to indexing there are 8 possibilities for using the diamond burnishing tips. Note: Use the largest possible radius. 29 1410 Tip radius mm 0,2 0,4 0,6 0,8 1 2 29 1410 29M Diamond burnishing tip (eShop) (eShop) (eShop) (eShop) (eShop) (eShop) Burnishing tool with diamond burnishing tips Technology Burnished with diamond The pressure of the diamond burnishing tip produces a material flow RZ = 0.4 μm from the near-surface material layer which was produced using machining. The roughness peaks are levelled and the roughness reduced. This creates a smooth and resistant surface. Impressive advantages ■ Smoothing of extremely hard materials up to 65 HRC with surface quality Rz < 1 μm possible. ■ Simple and flexible application. 29 Different shank sizes using adapters. ■ 8 possibilities for using diamond tip. Easy change of position by means of indexing. Standard application values The technology values for the burnishing process are based on the finishing process, which was used to pre-machine the workpiece. ○ ISO code N N N P P P P P H H H M M S K ​ ​ ​ ap mm 0.005 – 0.02 0.006 – 0.04 0.01 – 0.08 0.01 – 0.1 0.01 – 0.1 0.05 – 0.2 0.005 – 0.02 ● ● f mm/rev 0.03 – 0.1 0.02 – 0.06 0.02 – 0.1 0.02 – 0.06 0.02 – 0.06 0.05 – 0.1 0.02 – 0.06 ● ● VC m/min 120 – 140 110 – 140 100 – 130 100 – 130 100 – 130 80 – 120 100 – 130 ● ● 910
