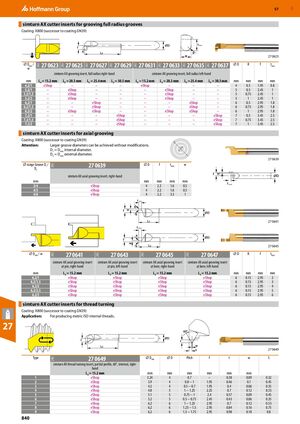

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 840
Навигация
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group запасные части, оснастка и СИЗ
simturn AX cutter inserts for grooving full radius grooves
Coating: X800 (successor to coating GN39)
max
27 0625
⌀ D / 27 0623 27 0625 27 0627 27 0629 27 0631 27 0633 27 0635 27 0637 ⌀ D R f t
wmin max simturn AX grooving insert, full radius right-hand simturn AX grooving insert, full radius left-hand
| mm | L = 15.2 mm | L = 20.3 mm | L = 25.4 mm | L = 30.5 mm | L = 15.2 mm | L = 20.3 mm | L = 25.4 mm | L = 30.5 mm | mm | mm | mm | mm |
| 4,2/1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| eShop | – | – | – | eShop | – | – | – | 4 | 0.5 | 1.95 | 0.8 | |
| 5,2/1 | – | eShop | – | – | – | eShop | – | – | 5 | 0.5 | 2.45 | 1 |
| 5,2/1,5 | – | eShop | – | – | – | eShop | – | – | 5 | 0.75 | 2.45 | 1 |
| 5,2/2 | – | eShop | – | – | – | eShop | – | – | 5 | 1 | 2.45 | 1 |
| 6,2/1 | – | – | eShop | – | – | – | eShop | – | 6 | 0.5 | 2.95 | 1.8 |
| 6,2/1,5 | – | – | eShop | – | – | – | eShop | – | 6 | 0.75 | 2.95 | 1.8 |
| 6,2/2 | – | eShop | eShop | – | – | eShop | eShop | – | 6 | 1 | 2.95 | 1.8 |
| 7,2/1 | – | – | – | eShop | – | – | – | eShop | 7 | 0.5 | 3.45 | 2.5 |
| 7,2/1,5 | – | – | – | eShop | – | – | – | eShop | 7 | 0.75 | 3.45 | 2.5 |
| 7,2/2 | – | – | – | eShop | – | – | – | eShop | 7 | 1 | 3.45 | 2.5 |
simturn AX cutter inserts for axial grooving
Coating: X800 (successor to coating GN39) D2
Attention: Larger groove diameters can be achieved without modifications.
D = D internal diameter. D1
D1 = Dmin external diameter. 2 min 27 0639
⌀ range Groove D / 27 0639 ⌀ D f t w
D 1 max
2 simturn AX axial grooving insert, right-hand
| mm | mm | mm | mm | mm | ||
| 3/4 | eShop | 4 | 2.2 | 1.6 | 0.5 | max |
| 4/5 | eShop | 4 | 2.2 | 1.6 | 0.5 | |
| 4/6 | eShop | 4 | 2.2 | 3.3 | 1 |
max
27 0641
max
27 0645
⌀ D / w 27 0641 27 0643 27 0645 27 0647 ⌀ D R f t
min max
simturn AX axial grooving insert simturn AX axial grooving insert simturn AX axial grooving insert simturn AX axial grooving insert
| at pin, right-hand | at pin, left-hand | at bore, right-hand | at bore, left-hand | |||||||||
| mm | L = 15.2 mm | L = 15.2 mm | L = 15.2 mm | L = 15.2 mm | mm | mm | mm | mm | ||||
| 6,2/1 | 2 | 2 | 2 | 2 | ||||||||
| eShop | eShop | eShop | eShop | 6 | 0.15 | 2.95 | 2 | |||||
| 6,2/1,5 | eShop | eShop | eShop | eShop | 6 | 0.15 | 2.95 | 3 | ||||
| 6,2/2 | eShop | eShop | eShop | eShop | 6 | 0.15 | 2.95 | 4 | ||||
| 6,2/2,5 | eShop | eShop | eShop | eShop | 6 | 0.15 | 2.95 | 5 | ||||
| 6,2/3 | eShop | eShop | eShop | eShop | 6 | 0.15 | 2.95 | 6 |
simturn AX cutter inserts for thread turning
Coating: X800 (successor to coating GN39)
Application: For producing metric ISO internal threads.
27
27 0649
Type 27 0649 ⌀ D ⌀ D Pitch f t w S
min simturn AX thread turning insert, partial profile, 60°, internal, righthand
L = 15.2 mm mm mm mm mm mm mm
1 2
| eShop | 3.24 | 4 | 0.7 | – | 0.38 | 0.09 | 0.32 | ||
| 2 | eShop | 3.9 | 4 | 0.8 − 1 | 1.95 | 0.46 | 0.1 | 0.45 | |
| 3 | eShop | 4.2 | 4 | 0.5 − 0.7 | 1.95 | 0.4 | 0.06 | 0.35 | |
| 4 | eShop | 4.8 | 5 | 1 − 1.25 | 2.25 | 0.7 | 0.12 | 0.55 | |
| 5 | eShop | 5.1 | 5 | 0.75 − 1 | 2.4 | 0.57 | 0.09 | 0.45 | |
| 6 | eShop | 5.2 | 5 | 0.5 − 0.75 | 2.45 | 0.43 | 0.06 | 0.35 | |
| 7 | eShop | 6.2 | 6 | 1 − 1.25 | 2.95 | 0.7 | 0.12 | 0.55 | |
| 8 | eShop | 6.2 | 6 | 1.25 − 1.5 | 2.95 | 0.84 | 0.16 | 0.75 | |
| 9 | eShop | 6.2 | 6 | 1.5 − 1.75 | 2.95 | 0.98 | 0.18 | 0.8 |
