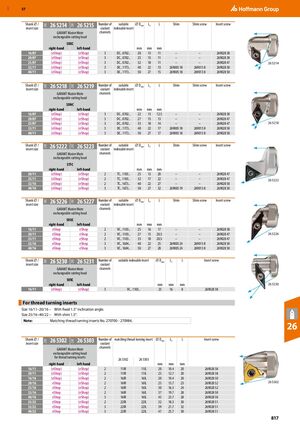

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 817

Каталог Hoffmann Group ручной и измерительный инструмент

Каталог Hoffmann Group ручной и измерительный инструмент

Каталог Hoffmann Group режущий и вспомогательный инструмент

Каталог Hoffmann Group режущий и вспомогательный инструмент

Производственная мебель и системы хранения Hoffmann Group 2026

Производственная мебель и системы хранения Hoffmann Group 2026

Каталог Hoffmann Group токарный инструмент

Каталог Hoffmann Group токарный инструмент

Каталог Hoffmann Group запасные части, оснастка и СИЗ

Каталог Hoffmann Group запасные части, оснастка и СИЗ

Shank ⌀ /	26 5214	26 5215	Number of		suitable	⌀ D		L	L	Shim	Shim screw	Insert screw
insert size			coolant	indexable insert			min	3

GARANT Master Mute channels exchangeable cutting head SDXC

	right-hand	left-hand			mm	mm	mm
16/07	(eShop)	(eShop)	3	DC.. 0702..	20	13	11		–		–	269028 38
20/07	(eShop)	(eShop)	3	DC.. 0702..	25	15	11		–		–	269028 38
25/07	(eShop)	(eShop)	3	DC.. 0702..	32	18	11		–		–	26 5214 269028 47
32/11	(eShop)	(eShop)	3	DC.. 11T3..	40	22	13	269005 18		269013 8		269028 50
40/11	(eShop)	(eShop)	3	DC.. 11T3..	50	27	15	269005 18		269013 8		269028 50
Shank ⌀ /	26 5218	26 5219	Number of	suitable	⌀ D	L	L		Shim	Shim screw		Insert screw
insert size			coolant	indexable insert	min	3

GARANT Master Mute channels exchangeable cutting head SDNC

	right-hand	left-hand			mm	mm	mm
16/07	(eShop)	(eShop)	3	DC.. 0702..	22	13	12.5		–		–	269028 38
20/07	(eShop)	(eShop)	3	DC.. 0702..	27	15	13		–		–	269028 47
25/07	(eShop)	(eShop)	3	DC.. 0702..	33	18	14		–		–	26 5218 269028 47
32/11	(eShop)	(eShop)	3	DC.. 11T3..	40	22	17	269005 18		269013 8		269028 50
40/11	(eShop)	(eShop)	3	DC.. 11T3..	50	27	17	269005 18		269013 8		269028 50
Shank ⌀ /	26 5222	26 5223	Number of	suitable	⌀ D	L	L		Shim	Shim screw		Insert screw
insert size			coolant	indexable insert	min	3

GARANT Master Mute channels exchangeable cutting head STFC

	right-hand	left-hand			mm	mm	mm
20/11	(eShop)	(eShop)	2	TC.. 1103..	25	13	20	–		–	269028 47
25/11	(eShop)	(eShop)	2	TC.. 1103..	32	17	22	–		–	26 5222 269028 47
32/16	(eShop)	(eShop)	2	TC.. 16T3..	40	22	27	–		–	269028 50
40/16	(eShop)	(eShop)	3	TC.. 16T3..	50	27	32	269005 19	269013 8		269028 50
Shank ⌀ /	26 5226	26 5227	Number of	suitable	⌀ D	L	L	Shim	Shim screw		Insert screw
insert size			coolant	indexable insert	min	3

GARANT Master Mute channels exchangeable cutting head SVUC

	right-hand	left-hand			mm	mm	mm
16/11	eShop	eShop	2	VC.. 1103..	25	16		17		–		–	269028 38
20/11	eShop	eShop	2	VC.. 1103..	27	15	20.5			–		–	26 5226 269028 47
25/11	eShop	eShop	2	VC.. 1103..	33	18	20.5			–		–	269028 47
32/16	eShop	eShop	3	VC.. 1604..	40	22		25	269005 24		269013 8		269028 50
40/16	eShop	eShop	3	VC.. 1604..	50	27		28	269005 24		269013 8		269028 50
Shank ⌀ /	26 5230	26 5231	Number of	suitable indexable insert			⌀ D		L		L		Insert screw
insert size			coolant					min		3

GARANT Master Mute channels exchangeable cutting head SVXC

	right-hand	left-hand			mm	mm	mm		26 5230
16/11	(eShop)	(eShop)	3	VC.. 1103..	25	16	8	269028 38

For thread turning inserts

Size 16/11–20/16 – With fixed 1.5° inclination angle. Size 25/16–40/22 – With shim 1.5°.

Note: Matching thread turning inserts No. 270700 - 270984. 26

Shank ⌀ /	26 5302	26 5303	Number of	matching thread turning insert ⌀ D		L	L	Insert screw
insert size			coolant		min	3

GARANT Master Mute channels exchangeable cutting head for thread turning inserts 26 5302 26 5303

	right-hand	left-hand				mm	mm	mm
16/11	(eShop)	(eShop)	2	11IR	11IL	20	10.4	20	269028 38
20/11	(eShop)	(eShop)	2	11IR	11IL	25	12.7	20	269028 38
16/16	(eShop)	(eShop)	2	16IR	16IL	20	10.4	20	269028 50
20/16	eShop	(eShop)	2	16IR	16IL	25	13.7	23	26 5302 269028 52
25/16	eShop	(eShop)	2	16IR	16IL	30	16.3	24	269028 52
32/16	eShop	(eShop)	2	16IR	16IL	37	19.7	28	269028 50
40/16	eShop	(eShop)	3	16IR	16IL	45	23.7	28	269028 50
25/22	eShop	(eShop)	2	22IR	22IL	32	18.3	30	269028 51
32/22	eShop	(eShop)	3	22IR	22IL	39	21.7	32	269028 51
40/22	eShop	(eShop)	3	22IR	22IL	47	25.7	30	269028 51
