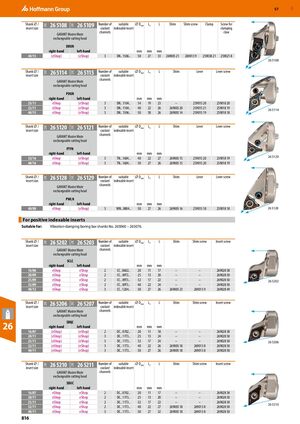

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 816

Каталог Hoffmann Group ручной и измерительный инструмент

Каталог Hoffmann Group ручной и измерительный инструмент

Каталог Hoffmann Group режущий и вспомогательный инструмент

Каталог Hoffmann Group режущий и вспомогательный инструмент

Производственная мебель и системы хранения Hoffmann Group 2026

Производственная мебель и системы хранения Hoffmann Group 2026

Каталог Hoffmann Group токарный инструмент

Каталог Hoffmann Group токарный инструмент

Каталог Hoffmann Group запасные части, оснастка и СИЗ

Каталог Hoffmann Group запасные части, оснастка и СИЗ

Shank ⌀ /	26 5108	26 5109	Number of		suitable	⌀ D		L	L	Shim	Shim screw	Clamp	Screw for
insert size			coolant	indexable insert			min	3					clamping

channels claw GARANT Master Mute exchangeable cutting head DDUN

	right-hand	left-hand			mm	mm	mm
40/15	(eShop)	(eShop)	3	DN.. 1506..	50	27	33	269005 21	269013 9	259038 21	259021 8

26 5108

Shank ⌀ /	26 5114	26 5115	Number of		suitable	⌀ D		L	L	Shim	Lever	Lever screw
insert size			coolant	indexable insert			min	3

channels GARANT Master Mute exchangeable cutting head PDUN

	right-hand	left-hand			mm	mm	mm
25/11	eShop	(eShop)	3	DN.. 1104..	34	19	23		–	259015 20	259018 20
32/11	eShop	(eShop)	3	DN.. 1104..	40	22	26	269005 20		259015 21	259018 19

26 5114

40/15	eShop	(eShop)		3		DN.. 1506..		50	30	26	269005 14	259015 19	259018 18
Shank ⌀ /	26 5120	26 5121	Number of			suitable	⌀ D		L	L	Shim	Lever	Lever screw
insert size				coolant	indexable insert			min	3

channels GARANT Master Mute exchangeable cutting head PTFN

	right-hand	left-hand						mm	mm	mm
32/16	eShop	(eShop)		3		TN.. 1604..		40	22	27	269005 15	259015 20	259018 19	26 5120
40/16	eShop	(eShop)		3		TN.. 1604..		50	27	26	269005 15	259015 20	259018 19
Shank ⌀ /	26 5128	26 5129	Number of			suitable	⌀ D		L	L	Shim	Lever	Lever screw
insert size				coolant	indexable insert			min	3

channels GARANT Master Mute exchangeable cutting head PWLN

	right-hand	left-hand			mm	mm	mm
40/08	eShop	(eShop)	3	WN.. 0804..	50	27	26	269005 16	259015 18	259018 18	26 5128

For positive indexable inserts

Suitable for: Vibration-damping boring bar shanks No. 265060 – 265076.

Shank ⌀ /	26 5202	26 5203	Number of		suitable	⌀ D		L	L	Shim	Shim screw	Insert screw
insert size			coolant	indexable insert			min	3

GARANT Master Mute channels exchangeable cutting head SCLC

	right-hand	left-hand			mm	mm	mm
16/06	eShop	eShop	2	CC.. 0602..	20	11	17	–		–	269028 38
20/09	eShop	eShop	2	CC.. 09T3..	25	13	20	–		–	269028 50
25/09	eShop	eShop	2	CC.. 09T3..	32	17	22	–		–	26 5202 269028 50
32/09	eShop	eShop	2	CC.. 09T3..	40	22	24	–		–	269028 50
40/12	eShop	eShop	3	CC.. 1204..	50	27	26	269005 23	269013 9		269028 49
Shank ⌀ /	26 5206	26 5207	Number of	suitable	⌀ D	L	L	Shim	Shim screw		Insert screw
insert size			coolant	indexable insert	min	3

GARANT Master Mute channels exchangeable cutting head 26 SDQC

	right-hand	left-hand			mm	mm	mm
16/07	(eShop)	(eShop)	2	DC.. 0702..	20	11	18		–		–	269028 38
20/11	(eShop)	(eShop)	3	DC.. 11T3..	25	13	24		–		–	269028 50
25/11	(eShop)	(eShop)	3	DC.. 11T3..	32	17	24		–		–	26 5206 269028 50
32/11	(eShop)	(eShop)	3	DC.. 11T3..	40	22	26	269005 18		269013 8		269028 50
40/11	(eShop)	(eShop)	3	DC.. 11T3..	50	27	26	269005 18		269013 8		269028 50
Shank ⌀ /	26 5210	26 5211	Number of	suitable	⌀ D	L	L		Shim	Shim screw		Insert screw
insert size			coolant	indexable insert	min	3

GARANT Master Mute channels exchangeable cutting head SDUC

	right-hand	left-hand			mm	mm	mm
16/07	eShop	eShop	2	DC.. 0702..	20	11	17		–		–	269028 38
20/11	eShop	eShop	2	DC.. 11T3..	25	13	20		–		–	269028 50
25/11	eShop	eShop	2	DC.. 11T3..	32	17	22		–		–	269028 50
	eShop	eShop	2	DC.. 11T3..	40	22	27	269005 18		269013 8		269028 50
40/11	eShop	eShop	3	DC.. 11T3..	50	27	32	269005 18		269013 8		269028 50
