ISO ISO

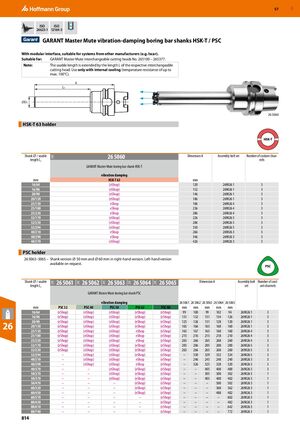

GARANT Master Mute vibration-damping boring bar shanks HSK-T / PSC
With modular interface, suitable for systems from other manufacturers (e.g. Iscar).
Suitable for: GARANT Master Mute interchangeable cutting heads No. 265100 – 265377.
Note: The usable length is extended by the length L of the respective interchangeable cutting head. Use only with internal cooling (temperature resistance of up to max. 100°C). A L
⌀Ds
26 5060
HSK-T 63 holder
HSK-T
Shank ⌀ / usable 26 5060 Dimension A Assembly bolt set Number of coolant chan-
length L nels 1 GARANT Master Mute boring bar shank HSK-T vibration damping
| mm | HSK-T 63 | mm | ||
| 16/64 | (eShop) | 120 | 269026 1 | 3 |
| 16/96 | (eShop) | 152 | 269026 1 | 3 |
| 20/90 | (eShop) | 146 | 269026 1 | 3 |
| 20/130 | (eShop) | 186 | 269026 1 | 3 |
| 25/130 | eShop | 186 | 269026 4 | 3 |
| 25/180 | eShop | 236 | 269026 4 | 3 |
| 25/230 | eShop | 286 | 269026 4 | 3 |
| 32/170 | (eShop) | 226 | 269026 5 | 3 |
| 32/230 | (eShop) | 286 | 269026 5 | 3 |
| 32/294 | (eShop) | 350 | 269026 5 | 3 |
| 40/210 | eShop | 266 | 269026 3 | 3 |
| 40/290 | eShop | 346 | 269026 3 | 3 |
| 40/370 | (eShop) | 426 | 269026 3 | 3 |
PSC holder
26 5063–5065 – Shank version ⌀ 50 mm and ⌀ 60 mm in right-hand version. Left-hand version available on request. PSC
Shank ⌀ / usable 26 5061 26 5062 26 5063 26 5064 26 5065 Dimension A Assembly bolt Number of cool-
length L set ant channels
1 GARANT Master Mute boring bar shank PSC vibration damping 26 5061 26 5062 26 5063 26 5064 26 5065
| mm | PSC 32 | PSC 40 | PSC 50 | PSC 63 | PSC 80 | mm | mm | mm | mm | mm | ||||
| 16/64 | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | 99 | 100 | 99 | 102 | 94 | 269026 1 | 3 | ||
| 16/96 | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | 131 | 132 | 131 | 134 | 126 | 269026 1 | 3 | ||
| 26 20/90 | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | 125 | 126 | 131 | 128 | 120 | 269026 1 | 3 | ||
| 20/130 | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | 165 | 166 | 165 | 168 | 160 | 269026 1 | 3 | ||
| 25/130 | (eShop) | (eShop) | (eShop) | eShop | (eShop) | 165 | 167 | 165 | 168 | 160 | 269026 4 | 3 | ||
| 25/180 | (eShop) | (eShop) | (eShop) | eShop | (eShop) | 215 | 216 | 215 | 218 | 210 | 269026 4 | 3 | ||
| 25/230 | (eShop) | (eShop) | (eShop) | eShop | (eShop) | 265 | 266 | 265 | 268 | 260 | 269026 4 | 3 | ||
| 32/170 | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | 205 | 206 | 205 | 208 | 200 | 269026 5 | 3 | ||
| 32/230 | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | 265 | 266 | 265 | 268 | 260 | 269026 5 | 3 | ||
| 32/294 | – | (eShop) | (eShop) | (eShop) | (eShop) | – | 330 | 329 | 332 | 324 | 269026 5 | 3 | ||
| 40/210 | – | (eShop) | (eShop) | eShop | (eShop) | – | 246 | 245 | 248 | 240 | 269026 3 | 3 | ||
| 40/290 | – | (eShop) | (eShop) | eShop | (eShop) | – | 326 | 325 | 328 | 320 | 269026 3 | 3 | ||
| 40/370 | – | – | (eShop) | (eShop) | (eShop) | – | – | 405 | 408 | 400 | 269026 3 | 3 | ||
| 50/270 | – | – | (eShop) | (eShop) | (eShop) | – | – | 305 | 308 | 302 | 269026 3 | 1 | ||
| 50/370 | – | – | (eShop) | (eShop) | (eShop) | – | – | 405 | 408 | 402 | 269026 3 | 1 | ||
| 50/470 | – | – | – | (eShop) | (eShop) | – | – | – | 508 | 502 | 269026 3 | 1 | ||
| 60/330 | – | – | – | (eShop) | (eShop) | – | – | – | 368 | 362 | 269026 3 | 1 | ||
| 60/450 | – | – | – | (eShop) | (eShop) | – | – | – | 488 | 482 | 269026 3 | 1 | ||
| 60/570 | – | – | – | – | (eShop) | – | – | – | – | 602 | 269026 3 | 1 | ||
| 80/450 | – | – | – | – | (eShop) | – | – | – | – | 482 | 269026 3 | 1 | ||
| 80/610 | – | – | – | – | (eShop) | – | – | – | – | 642 | 269026 3 | 1 | ||
| 80/740 | – | – | – | – | (eShop) | – | – | – | – | 772 | 269026 3 | 1 |
