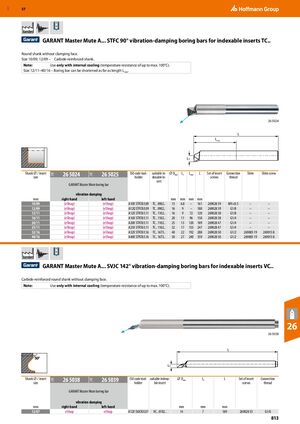

GARANT Master Mute A... STFC 90° vibration-damping boring bars for indexable inserts TC.. Round shank without clamping face. Size 10/09; 12/09 – Carbide-reinforced shank.
Note: Use only with internal cooling (temperature resistance of up to max. 100°C). Size 12/11–40/16 – Boring bar can be shortened as far as length L . min
L min
26 5024
L
L3
| Shank ⌀ / insert | 26 5024 | 26 5025 | ISO code tool- | suitable in- | ⌀ D | L | L | L | Set of insert | Connection | Shim | Shim screw | |||
| size | holder | dexable in- | min | 3 | min | screws | thread |
sert GARANT Master Mute boring bar vibration damping
mm right-hand left-hand mm mm mm mm
| 10/09 | (eShop) | (eShop) | A10X STFCR/L09 TC.. 0902.. | 13 | 6.8 | – | 161 | 269028 39 | M9×0.5 | – | – | ||
| 12/09 | (eShop) | (eShop) | A12Q STFCR/L09 TC.. 0902.. | 16 | 9 | – | 180 | 269028 39 | G1/8 | – | – | ||
| 12/11 | (eShop) | (eShop) | A12X STFCR/L11 TC.. 1102.. | 16 | 9 | 72 | 120 | 269028 38 | G1/8 | – | – | ||
| 16/11 | (eShop) | (eShop) | A16X STFCR/L11 TC.. 1102.. | 20 | 11 | 96 | 158 | 269028 38 | G1/4 | – | – | ||
| 20/11 | (eShop) | (eShop) | A20X STFCR/L11 TC.. 1102.. | 25 | 13 | 120 189 | 269028 47 | G1/4 | – | – | |||
| 25/11 | (eShop) | (eShop) | A25X STFCR/L11 TC.. 1102.. | 32 | 17 | 155 247 | 269028 47 | G1/4 | – | – | |||
| 32/16 | (eShop) | (eShop) | A32X STFCR/L16 TC.. 16T3.. | 40 | 22 | 192 288 | 269028 50 | G1/2 | 269005 19 | 269013 8 | |||
| 40/16 | (eShop) | (eShop) | A40X STFCR/L16 TC.. 16T3.. | 50 | 27 | 240 359 | 269028 50 | G1/2 | 269005 19 | 269013 8 |
Standard GARANT Master Mute A... SVJC 142° vibration-damping boring bars for indexable inserts VC.. Carbide-reinforced round shank without clamping face.
Note: Use only with internal cooling (temperature resistance of up to max. 100°C).
26
26 5038
L 50° L
| Shank ⌀ / insert | 26 5038 | 26 5039 | ISO code tool- | suitable indexa- | ⌀ D | L | L | Set of insert | Connection | ||||
| size | holder | ble insert | min | 3 | screws | thread |
GARANT Master Mute boring bar vibration damping
12/07 eShop eShop A12X SVJCR/L07 VC.. 0702.. 14 7 189 269028 53 G1/8
