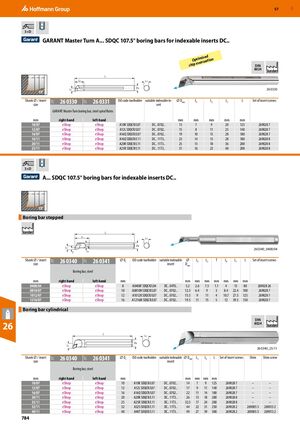

57


3×D
GARANT Master Turn A... SDQC 107.5° boring bars for indexable inserts DC..
ised
Optimcuation
va
chip e DIN
8024 Standard
L
L L2
Ds 26 0330
L
15°
Shank ⌀ / insert 26 0330 26 0331 ISO code toolholder suitable indexable in- ⌀ Dmin L3 L2 L1 L Set of insert screws
21T


21T


size sert
GARANT Master Turn boring bar, steel spiral flutes
mm right-hand left-hand ​ ​ mm mm mm mm mm ​
10/07 eShop eShop A10K SDQCR/L07 DC.. 0702.. 13 7 9 20 125 269028 7
12/07 eShop eShop A12L SDQCR/L07 DC.. 0702.. 15 8 11 25 140 269028 7
16/07 eShop eShop A16Q SDQCR/L07 DC.. 0702.. 19 10 15 28 180 269028 7
16/11 eShop eShop A16Q SDQCR/L11 DC.. 11T3.. 23 14 15 28 180 269028 8
20/11 eShop eShop A20R SDQCR/L11 DC.. 11T3.. 25 13 18 36 200 269028 8
25/11 eShop eShop A25R SDQCR/L11 DC.. 11T3.. 31 16 23 40 200 269028 8


3×D
A... SDQC 107.5° boring bars for indexable inserts DC..

15°
Boring bar stepped ​
Standard L
L
L2
Ds
L
26 0340_0408/04
L
T
Shank ⌀ / insert 26 0340 26 0341 ⌀ Ds ISO code toolholder suitable indexable ⌀ L3 L2 T L4 L1 L Set of insert screws
21T


21T


size insert Dmin
Boring bar, steel
mm right-hand left-hand mm ​ mm mm mm mm mm mm mm ​
0408/04 eShop eShop 8 A0408F SDQCR/L04 DC.. 04T0.. 5.2 2.6 7.5 1.1 4 15 80 269028 26
0810/07 eShop eShop 10 A0810H SDQCR/L07 DC.. 0702.. 12.5 6.4 9 3 8.4 22.4 100 269028 7
1012/07 eShop eShop 12 A1012K SDQCR/L07 DC.. 0702.. 15.5 9 11 4 10.7 27.5 125 269028 7
1216/07 eShop eShop 16 A1216M SDQCR/L07 DC.. 0702.. 19.5 11 15 5 12 39.5 150 269028 7
Boring bar cylindrical ​
DIN
26 8024 Standard
L
L2
Ds
L
26 0340_25/11
Shank ⌀ / insert 26 0340 26 0341 ⌀ Ds ISO code toolholder suitable indexable ⌀ Dmin L3 L2 L Set of insert screws Shim Shim screw
21T


21T


size insert
Boring bar, steel
mm right-hand left-hand mm ​ mm mm mm mm ​ ​
10/07 eShop eShop 10 A10K SDQCR/L07 DC.. 0702.. 14 7 9 125 269028 7 – –
12/07 eShop eShop 12 A12L SDQCR/L07 DC.. 0702.. 17 9 11 140 269028 7 – –
16/07 eShop eShop 16 A16Q SDQCR/L07 DC.. 0702.. 22 11 14 180 269028 7 – –
20/11 eShop eShop 20 A20R SDQCR/L11 DC.. 11T3.. 26 13 18 200 269028 8 – –
25/11 eShop eShop 25 A25R SDQCR/L11 DC.. 11T3.. 32.5 17 24 200 269028 8 – –
32/11 eShop eShop 32 A32S SDQCR/L11 DC.. 11T3.. 44 22 31 250 269028 2 269005 3 269013 2
40/11 eShop eShop 40 A40T SDQCR/L11 DC.. 11T3.. 49 27 39 300 269028 2 269005 3 269013 2
