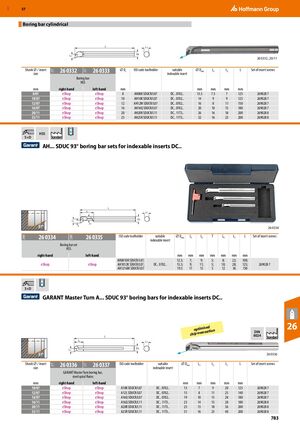

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 783

GBP 57

Boring bar cylindrical ​

L L2
Ds
L
26 0332_20/11

Shank ⌀ / insert 26 0332 26 0333 ⌀ Ds ISO code toolholder suitable ⌀ Dmin L3 L2 L Set of insert screws
21T


21T
size indexable insert
Boring bar
HSS
mm right-hand left-hand mm ​ ​ mm mm mm mm ​
8/07 eShop eShop 8 AH08K SDUCR/L07 DC.. 0702.. 13.5 7.5 7 125 269028 7
10/07 eShop eShop 10 AH10K SDUCR/L07 DC.. 0702.. 14 9 9 125 269028 7
12/07 eShop eShop 12 AH12M SDUCR/L07 DC.. 0702.. 16 8 11 150 269028 7
16/07 eShop eShop 16 AH16Q SDUCR/L07 DC.. 0702.. 20 10 15 180 269028 7
20/11 eShop eShop 20 AH20R SDUCR/L11 DC.. 11T3.. 26 16 18 200 269028 8
25/11 eShop eShop 25 AH25R SDUCR/L11 DC.. 11T3.. 32 16 23 200 269028 8

HSS
5×D Standard
AH... SDUC 93° boring bar sets for indexable inserts DC..


L
L L2
Ds
L
L
27° T
26 0334
26 0334 26 0335 ISO code toolholder suitable ⌀ Dmin L3 L2 T L4 L1 L Set of insert screws
29W


29W


indexable insert
Boring bar set
HSS
right-hand left-hand ​ ​ mm mm mm mm mm mm mm ​
AH0810H SDUCR/L07; 12.5; 7; 9; 5; 8; 22; 100;
eShop eShop AH1012K SDUCR/L07; DC.. 0702.. 15.5; 9; 11; 5; 10; 28; 125; 269028 7
AH1216M SDUCR/L07 19.5 11 15 5 12 36 150


3×D
GARANT Master Turn A... SDUC 93° boring bars for indexable inserts DC..

ed
optimis ation
cu DIN
26
L
chip eva 8024 Standard
L L2
Ds
L
27° 26 0336
Shank ⌀ / insert 26 0336 26 0337 ISO code toolholder suitable ⌀ Dmin L3 L2 L1 L Set of insert screws
21T


21T


size indexable insert
GARANT Master Turn boring bar,
steel spiral flutes
mm right-hand left-hand ​ ​ mm mm mm mm mm ​
10/07 eShop eShop A10K SDUCR/L07 DC.. 0702.. 13 7 9 20 125 269028 7
12/07 eShop eShop A12L SDUCR/L07 DC.. 0702.. 15 8 11 25 140 269028 7
16/07 eShop eShop A16Q SDUCR/L07 DC.. 0702.. 19 10 15 28 180 269028 7
16/11 eShop eShop A16Q SDUCR/L11 DC.. 11T3.. 23 14 15 28 180 269028 8
20/11 eShop eShop A20R SDUCR/L11 DC.. 11T3.. 25 13 18 36 200 269028 8
25/11 eShop eShop A25R SDUCR/L11 DC.. 11T3.. 31 16 23 40 200 269028 8
783
