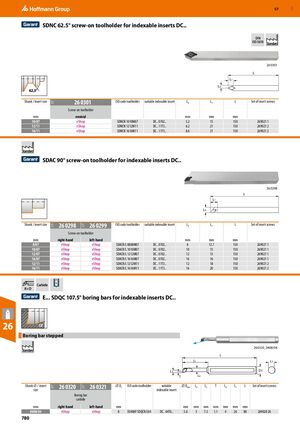

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 780

GBP
57

​ SDNC 62.5° screw-on toolholder for indexable inserts DC..
DIN
ISO 5610 Standard


26 0301
L
L1
L4
62,5°
Shank / insert size 26 0301 ISO code toolholder suitable indexable insert L4 L1 L Set of insert screws
21T


Screw-on toolholder
mm neutral ​ ​ mm mm mm ​
10/07 eShop SDNCN 1010M07 DC.. 0702.. 5.2 15 150 269021 1
12/11 eShop SDNCN 1212M11 DC.. 11T3.. 6.2 21 150 269021 2
16/11 eShop SDNCN 1616M11 DC.. 11T3.. 8.6 21 150 269021 2

Standard
SDAC 90° screw-on toolholder for indexable inserts DC..

26 0298
L
L1
L4

Shank / insert size 26 0298 26 0299 ISO code toolholder suitable indexable insert L4 L1 L Set of insert screws
21T


21T


Screw-on toolholder
mm right-hand left-hand ​ ​ mm mm mm ​
8/07 eShop eShop SDACR/L 0808M07 DC.. 0702.. 8 12.7 150 269021 1
10/07 eShop eShop SDACR/L 1010M07 DC.. 0702.. 10 15 150 269021 1
12/07 eShop eShop SDACR/L 1212M07 DC.. 0702.. 12 15 150 269021 1
16/07 eShop eShop SDACR/L 1616M07 DC.. 0702.. 16 16 150 269021 1
12/11 eShop eShop SDACR/L 1212M11 DC.. 11T3.. 12 18 150 269021 2
16/11 eShop eShop SDACR/L 1616M11 DC.. 11T3.. 16 20 150 269021 2

Carbide
8×D
E... SDQC 107.5° boring bars for indexable inserts DC..

26 15°
Boring bar stepped ​
26 0320_0408/04
Standard
L
L L2
L Ds
T L
Shank ⌀ / insert 26 0320 26 0321 ⌀ Ds ISO code toolholder suitable ⌀ Dmin L3 L2 T L4 L1 L Set of insert screws
21T


21T


size indexable insert
Boring bar
carbide
mm right-hand left-hand mm ​ ​ mm mm mm mm mm mm mm ​
0408/04 eShop eShop 8 E0408F SDQCR/L04 DC.. 04T0.. 5.6 3 7.5 1.1 4 26 80 269028 26
