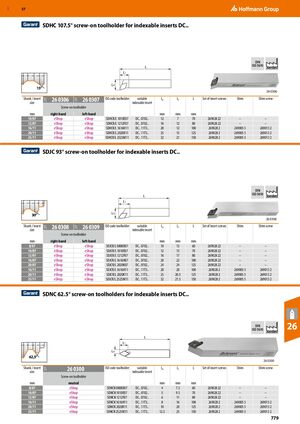

GBP 57

SDHC 107.5° screw-on toolholder for indexable inserts DC..


DIN
L ISO 5610 Standard
L1

L4
15°
26 0306
Shank / insert 26 0306 26 0307 ISO code toolholder suitable L4 L1 L Set of insert screws Shim Shim screw
21T


21T


size indexable insert
Screw-on toolholder
mm right-hand left-hand ​ mm mm mm ​ ​ ​
10/07 eShop eShop SDHCR/L 1010E07 DC.. 0702.. 12 7 70 269028 22 – –
12/07 eShop eShop SDHCR/L 1212F07 DC.. 0702.. 16 12 80 269028 22 – –
16/11 eShop eShop SDHCR/L 1616H11 DC.. 11T3.. 20 12 100 269028 2 269005 3 269013 2
20/11 eShop eShop SDHCR/L 2020K11 DC.. 11T3.. 25 15 125 269028 2 269005 3 269013 2
25/11 eShop eShop SDHCR/L 2525M11 DC.. 11T3.. 32 21 150 269028 2 269005 3 269013 2

SDJC 93° screw-on toolholder for indexable inserts DC..


DIN
ISO 5610 Standard
L
L1

L4
30°
26 0308
Shank / insert 26 0308 26 0309 ISO code toolholder suitable L4 L1 L Set of insert screws Shim Shim screw
21T


21T


size indexable insert
Screw-on toolholder
mm right-hand left-hand ​ mm mm mm ​ ​ ​
8/07 eShop eShop SDJCR/L 0808D07 DC.. 0702.. 10 13 60 269028 22 – –
10/07 eShop eShop SDJCR/L 1010E07 DC.. 0702.. 12 13 70 269028 22 – –
12/07 eShop eShop SDJCR/L 1212F07 DC.. 0702.. 16 17 80 269028 22 – –
16/07 eShop eShop SDJCR/L 1616H07 DC.. 0702.. 20 22 100 269028 22 – –
20/07 eShop eShop SDJCR/L 2020K07 DC.. 0702.. 24 24 125 269028 22 – –
16/11 eShop eShop SDJCR/L 1616H11 DC.. 11T3.. 20 20 100 269028 2 269005 3 269013 2
20/11 eShop eShop SDJCR/L 2020K11 DC.. 11T3.. 25 20.5 125 269028 2 269005 3 269013 2
25/11 eShop eShop SDJCR/L 2525M11 DC.. 11T3.. 32 21.5 150 269028 2 269005 3 269013 2

SDNC 62.5° screw-on toolholders for indexable inserts DC..


DIN
ISO 5610 Standard 26
L
L1
L4
62,5°
26 0300
Shank / insert 26 0300 ISO code toolholder suitable L4 L1 L Set of insert screws Shim Shim screw
21T


size indexable insert​
Screw-on toolholder
mm neutral ​ mm mm mm ​ ​ ​
8/07 eShop SDNCN 0808D07 DC.. 0702.. 4 7.5 60 269028 22 – –
10/07 eShop SDNCN 1010E07 DC.. 0702.. 5 9.5 70 269028 22 – –
12/07 eShop SDNCN 1212F07 DC.. 0702.. 6 11 80 269028 22 – –
16/11 eShop SDNCN 1616H11 DC.. 11T3.. 8 16 100 269028 2 269005 3 269013 2
20/11 eShop SDNCN 2020K11 DC.. 11T3.. 10 20 125 269028 2 269005 3 269013 2
25/11 eShop SDNCN 2525M11 DC.. 11T3.. 12.5 25 150 269028 2 269005 3 269013 2
779
