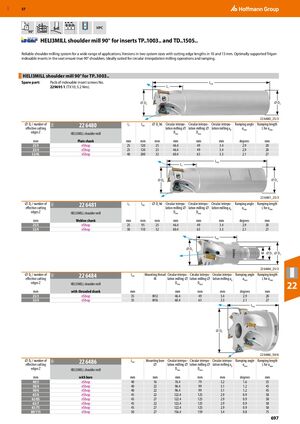

GBP 57 HPC 90° HELI3MILL shoulder mill 90° for inserts TP..1003.. and TD..1505.. Reliable shoulder milling system for a wide range of applications. Versions in two system sizes with cutting edge lengths in 10 and 15 mm. Optimally supported Trigon indexable inserts in the seat ensure true 90° shoulders. Ideally suited for circular interpolation milling operations and ramping. HELI3MILL shoulder mill 90° for TP..1003.. ​ Spare part: Pack of indexable insert screws No. Ltot 229695 1 (TX10; 3.2 Nm). L1 ⌀ DC ⌀ DS ​ 22 6480_25/3 ⌀ DC / number of 22 6480 L1 Ltot ⌀ Ds h6 Circular interpo- Circular interpo- Circular interpo- Ramping angle Ramping length 19D effective cutting lation milling ⌀ lation milling ⌀ lation milling ap αmax L for αmax edges Z HELI3MILL shoulder mill Dmin Dmax mm Plain shank mm mm mm mm mm mm degrees mm 25/3 eShop 25 120 25 46.4 49 3.4 2.9 20 25/4 eShop 25 120 25 46.4 49 3.4 2.9 20 32/4L eShop 40 200 32 60.4 63 3.3 2.1 27 Ltot L1 ⌀ DC ⌀ DS ​ 22 6481_25/3 ⌀ DC / number of 22 6481 L1 Ltot ⌀ Ds h6 Circular interpo- Circular interpo- Circular interpo- Ramping angle Ramping length 19D effective cutting lation milling ⌀ lation milling ⌀ lation milling ap αmax L for αmax edges Z HELI3MILL shoulder mill Dmin Dmax mm Weldon shank mm mm mm mm mm mm degrees mm 25/3 eShop 25 95 25 46.4 49 3.4 2.9 20 32/4 eShop 30 110 32 60.4 63 3.3 2.1 27 Ltot ⌀ DC M ⌀ D1 ⌀ D2 ​ 22 6484_25/3 ⌀ DC / number of 22 6484 Ltot Mounting thread Circular interpo- Circular interpo- Circular interpo- Ramping angle Ramping length 19D effective cutting M lation milling ⌀ lation milling ⌀ lation milling ap αmax L for αmax edges Z mm HELI3MILL shoulder mill with threaded shank mm ​ Dmin mm Dmax mm mm degrees mm 22 25/3 eShop 35 M12 46.4 49 3.4 2.9 20 32/4 eShop 35 M16 60.4 63 3.3 2.1 27 Ltot ⌀ DC ​ 22 6486_50/6 ⌀ DC / number of 22 6486 Ltot Mounting bore Circular interpo- Circular interpo- Circular interpo- Ramping angle Ramping length 19D effective cutting ⌀ lation milling ⌀ lation milling ⌀ lation milling ap αmax L for αmax edges Z HELI3MILL shoulder mill Dmin Dmax mm with bore mm mm mm mm mm degrees mm 40/5 eShop 40 16 76.4 79 3.2 1.6 35 50/4 eShop 40 22 96.4 99 3.1 1.2 45 50/6 eShop 40 22 96.4 99 3.1 1.2 45 63/6 eShop 45 22 122.4 125 2.9 0.9 58 63/6S eShop 45 27 122.4 125 2.9 0.9 58 63/7 eShop 45 22 122.4 125 2.9 0.9 58 63/7S eShop 45 27 122.4 125 2.9 0.9 58 80/11S eShop 50 27 156.4 159 3.4 0.8 75 697
