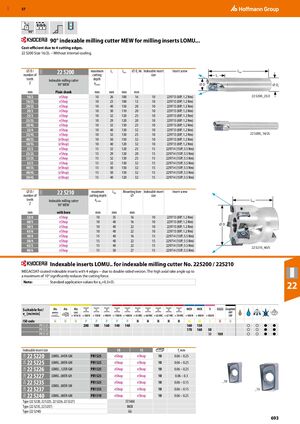

GBP 57 90° 90° indexable milling cutter MEW for milling inserts LOMU... Cost-efficient due to 4 cutting edges. 22 5200 Size 16/2L – Without internal cooling. ⌀D/ 22 5200 maximum L1 Ltot ⌀ Ds h6 Indexable insert Insert screw Ltot 25O number of cutting size L1 teeth Indexable milling cutter depth Z 90° MEW ap max ⌀D ⌀ Ds mm Plain shank mm mm mm mm ​ ​ 16/2 eShop 10 26 100 16 10 229713 (8IP; 1.2 Nm) 22 5200_25/2 16/2L eShop 10 23 100 12 10 229713 (8IP; 1.2 Nm) 20/2L eShop 10 40 150 20 10 229713 (8IP; 1.2 Nm) 20/3 eShop 10 30 110 20 10 229713 (8IP; 1.2 Nm) 25/3 eShop 10 32 120 25 10 229713 (8IP; 1.2 Nm) 25/3L eShop 10 29 120 20 10 229713 (8IP; 1.2 Nm) 30/4L eShop 10 32 130 25 10 229713 (8IP; 1.2 Nm) 32/4 eShop 10 40 130 32 10 229713 (8IP; 1.2 Nm) 32/4L eShop 10 32 130 25 10 229713 (8IP; 1.2 Nm) 22 5200_16/2L 40/5L (eShop) 10 50 150 32 10 229713 (8IP; 1.2 Nm) 50/5L (eShop) 10 40 120 32 10 229713 (8IP; 1.2 Nm) 25/2 eShop 15 32 120 25 15 229714 (15IP; 3.5 Nm) 25/2L eShop 15 29 120 20 15 229714 (15IP; 3.5 Nm) 32/2L eShop 15 32 130 25 15 229714 (15IP; 3.5 Nm) 32/3 eShop 15 32 130 32 15 229714 (15IP; 3.5 Nm) 40/3L (eShop) 15 50 150 32 15 229714 (15IP; 3.5 Nm) 40/4L (eShop) 15 50 150 32 15 229714 (15IP; 3.5 Nm) 50/4L (eShop) 15 40 120 32 15 229714 (15IP; 3.5 Nm) ⌀D/ 22 5210 maximum Ltot Mounting bore Indexable insert Insert screw 25O number of cutting depth ⌀ size teeth Indexable milling cutter ap max Ltot Z 90° MEW mm with bore mm mm mm ​ ​ 32/4 eShop 10 35 16 10 229713 (8IP; 1.2 Nm) 40/5 eShop 10 40 16 10 229713 (8IP; 1.2 Nm) ⌀D 50/5 eShop 10 40 22 10 229713 (8IP; 1.2 Nm) 63/6 eShop 10 40 22 10 229713 (8IP; 1.2 Nm) 40/4 eShop 15 40 16 15 229714 (15IP; 3.5 Nm) 50/4 eShop 15 40 22 15 229714 (15IP; 3.5 Nm) 63/5 eShop 15 40 22 15 229714 (15IP; 3.5 Nm) 22 5210_40/5 80/6 eShop 15 50 27 15 229714 (15IP; 3.5 Nm) ​ Indexable inserts LOMU.. for indexable milling cutter No. 225200 / 225210 MEGACOAT-coated indexable inserts with 4 edges − due to double-sided version. The high axial rake angle up to a maximum of 10° significantly reduces the cutting force. Note: 22 Standard application values for ae=0.3×D. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ PR1525 200 180 160 140 140 160 150 ○ ○ ● ● PR1535 170 160 50 ○ ○ ● ● PR1510 50 180 ○ ○ ● ● Indexable insert size 10 15 fz mm 22 5220 LOMU...04ER-GM PR1525 eShop eShop 10 0.06 – 0.25 25A 25A 25A 25A 25A 25A 25A 22 5225 LOMU...08ER-GM PR1525 eShop eShop 10 0.06 – 0.25 22 5226 LOMU...12ER-GM PR1525 eShop eShop 10 0.06 – 0.25 22 5227 LOMU...08ER-GH PR1525 eShop eShop 10 0.06 – 0.3 22 5235 LOMU...08ER-SM PR1525 eShop eShop 10 0.06 – 0.15 _10 22 5237 PR1535 eShop eShop 10 0.06 – 0.15 _15 22 5240 LOMU...08ER-GM PR1510 eShop eShop 10 0.06 – 0.25 Type (22 5220, 22 5225, 22 5226, 22 5227) ST1400 ​ ​ Type (22 5235, 22 5237) INOX ​ ​ Type (22 5240) GG ​ ​ 693
