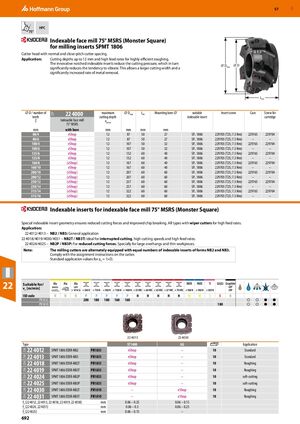

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 692

GBP 57 HPC 75° Indexable face mill 75° MSRS (Monster Square) for milling inserts SPMT 1806 Cutter head with normal and close-pitch cutter spacing. Application: Cutting depths up to 12 mm and high feed rates for highly efficient roughing. The innovative notched indexable inserts reduce the cutting pressure, which in turn ⌀ Dmax ⌀ D significantly reduces the tendency to vibrate. This allows a larger cutting width and a significantly increased rate of metal removal. Ltot ⌀ D / number of 22 4000 maximum ⌀ Dmax Ltot Mounting bore ⌀ suitable Insert screw Case Screw for 25P teeth cutting depth indexable insert cartridge Z Indexable face mill ap max 75° MSRS mm with bore mm mm mm mm ​ ​ ​ ​ 80/4 eShop 12 87 50 27 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 80/6 eShop 12 87 50 27 SP.. 1806 229703 (T25; 7.5 Nm) – – 100/4 eShop 12 107 50 32 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 100/6 eShop 12 107 50 32 SP.. 1806 229703 (T25; 7.5 Nm) – – 125/6 eShop 12 132 60 40 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 125/8 eShop 12 132 60 40 SP.. 1806 229703 (T25; 7.5 Nm) – – 160/8 (eShop) 12 167 60 40 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 160/10 eShop 12 167 60 40 SP.. 1806 229703 (T25; 7.5 Nm) – – 200/10 (eShop) 12 207 60 60 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 200/12 (eShop) 12 207 60 60 SP.. 1806 229703 (T25; 7.5 Nm) – – 250/12 (eShop) 12 257 60 60 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 250/14 (eShop) 12 257 60 60 SP.. 1806 229703 (T25; 7.5 Nm) – – 315/14 (eShop) 12 322 60 60 SP.. 1806 229703 (T25; 7.5 Nm) 229765 229704 315/16 (eShop) 12 322 60 60 SP.. 1806 229703 (T25; 7.5 Nm) – – ​ Indexable inserts for indexable face mill 75° MSRS (Monster Square) Special indexable insert geometry ensures reduced cutting forces and improved chip breaking. All types with wiper cutters for high feed rates. Application: 22 4012/4013 – NB2 / NB3: General application 22 4018/4019/4030/4031 – NB2T / NB3T: Ideal for interrupted cutting, high cutting speeds and high feed rates. 22 4024/4025 – NB2P / NB3P: For reduced cutting forces. Specially for large overhangs and thin workpieces. Note: The milling cutters are alternately equipped with equal numbers of indexable inserts of forms NB2 and NB3. Comply with the assignment instructions on the cutter. Standard application values for ae = 1×D. 22 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K N ​ ​ ​ ​ ​ PR1835 200 180 180 160 160 ○ ○ ● ● PR1810 180 ○ ○ ● ● ​ 22 4013 ​ 22 4030 Type ST1400 GG Application 22 4012 SPMT 1806 EDER-NB2 PR1835 eShop – 10 Standard 25A 25A 25A 25A 25A 25A 25A 25A 22 4013 SPMT 1806 EDER-NB3 PR1835 eShop – 10 Standard 22 4018 SPMT 1806 EDSR-NB2T PR1835 eShop – 10 Roughing 22 4019 SPMT 1806 EDSR-NB3T PR1835 eShop – 10 Roughing 22 4024 SPMT 1806 EDER-NB2P PR1835 eShop – 10 soft-cutting 22 4025 SPMT 1806 EDER-NB3P PR1835 eShop – 10 soft-cutting 22 4030 SPMT 1806 EDSR-NB2T PR1810 – eShop 10 Roughing 22 4031 SPMT 1806 EDSR-NB3T PR1810 – eShop 10 Roughing fz (22 4012, 22 4013, 22 4018, 22 4019, 22 4030) mm 0.06 – 0.25 0.06 – 0.15 ​ ​ fz (22 4024, 22 4031) mm 0.06 – 0.3 0.06 – 0.25 ​ ​ fz (22 4025) mm 0.06 – 0.15 – ​ ​ 692
