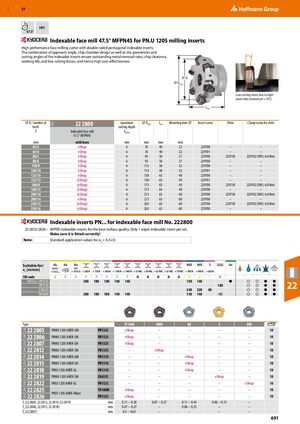

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 691

GBP 57 HPC 47.5° Indexable face mill 47.5° MFPN45 for PN.U 1205 milling inserts High performance face milling cutter with double-sided pentagonal indexable inserts. The combination of approach angle, chip chamber design as well as the geometries and cutting angles of the indexable inserts ensure outstanding metal removal rates, chip clearance, working life, and low cutting forces, and hence high cost-effectiveness. ⌀D ⌀ Dmax Low cutting force due to high axial rake (maximum +10°). Ltot ⌀ D / number of 22 2800 maximum ⌀ Dmax Ltot Mounting bore ⌀ Insert screw Shim Clamp screw for shim 25O teeth cutting depth Z Indexable face mill ap max 47.5° MFPN45 mm with bore mm mm mm mm ​ ​ ​ 63/5 eShop 6 76 40 22 229700 – – 63/6 eShop 6 76 40 22 229701 – – 80/5 eShop 6 93 50 27 229700 229750 229702 (SW5; 6.0 Nm) 80/6 eShop 6 93 50 27 229700 – – 100/8 eShop 6 113 50 32 229700 – – 100/10 eShop 6 113 50 32 229701 – – 125/10 eShop 6 138 63 40 229700 – – 125/13 (eShop) 6 138 63 40 229701 – – 160/8 (eShop) 6 173 63 40 229700 229750 229702 (SW5; 6.0 Nm) 160/12 (eShop) 6 173 63 40 229700 – – 200/10 (eShop) 6 213 63 60 229700 229750 229702 (SW5; 6.0 Nm) 200/14 eShop 6 213 63 60 229700 – – 250/12 (eShop) 6 263 63 60 229700 229750 229702 (SW5; 6.0 Nm) 250/16 (eShop) 6 263 63 60 229700 – – ​ Indexable inserts PN... for indexable face mill No. 222800 22 2825/2826 – WIPER indexable inserts for the best surface quality. Only 1 wiper indexable insert per set. Make sure it is fitted correctly! Note: Standard application values for ae = 0.3×D. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K ​ ​ ​ ​ ​ ​ PR1525 / PR1535 200 180 180 140 140 150 140 ● ○ ○ ● ● PR1510 CA6535 240 220 40 180 ○ ○ ○ ○ ● ● ● ● 22 TN100M 200 180 180 140 140 150 140 180 ○ ○ ● ● Type ST1400 INOX GG S UNI 22 2805 PNMU 1205 ANER-GM PR1525 eShop – – – – 10 25A 25A 25A 25A 25A 25A 25A 25A 25A 25A 25A 22 2806 PNMU 1205 ANER-SM PR1525 eShop – – – – 10 22 2807 PNMU 1205 ANER-GH PR1525 eShop – – – – 10 22 2812 PNMU 1205 ANER-SM PR1535 – eShop – – – 10 22 2814 PNMU 1205 ANER-GM PR1510 – – eShop – – 10 22 2815 PNMU 1205 ANER-GH PR1510 – – eShop – – 10 22 2818 PNEU 1205 ANER-GL PR1510 – – eShop – – 10 22 2819 PNMU 1205 ANER-SM CA6535 – – – eShop – 10 22 2822 PNEU 1205 ANER-GL PR1525 – – – – eShop 10 22 2825 PNEU 1205 ANER-Wiper TN100M eShop – – – – 10 22 2826 PR1525 eShop – – – – 10 fz (22 2805, 22 2812, 22 2814, 22 2819) mm 0.11 − 0.38 0.07 − 0.27 0.11 − 0.44 0.06 − 0.15 – ​ fz (22 2806, 22 2815, 22 2818) mm 0.07 − 0.27 – 0.06 − 0.25 – – ​ fz (22 2807) mm 0.2 − 0.65 – – – – ​ 691
