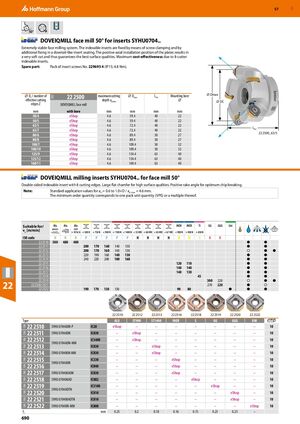

GBP 57 50° DOVEIQMILL face mill 50° for inserts SYHU0704.. Extremely stable face milling system. The indexable inserts are fixed by means of screw clamping and by additional fixing in a dovetail-like insert seating. The positive axial installation position of the plates results in a very soft cut and thus guarantees the best surface qualities. Maximum cost-effectiveness due to 8-cutter indexable inserts. Spare part: Pack of insert screws No. 229695 4 (IP15; 4.8 Nm). ⌀ Dmax ⌀ DC / number of 22 2500 maximum cutting ⌀ Dmax Ltot Mounting bore 19D effective cutting depth ap max ⌀ ⌀ DC edges Z DOVEIQMILL face mill mm with bore mm mm mm mm 50/4 eShop 4.6 59.4 40 22 50/5 eShop 4.6 59.4 40 22 63/5 eShop 4.6 72.4 40 22 Ltot 63/7 eShop 4.6 72.4 40 22 22 2500_63/5 80/6 eShop 4.6 89.4 50 27 80/8 eShop 4.6 89.4 50 27 100/7 eShop 4.6 109.4 50 32 100/10 eShop 4.6 109.4 50 32 125/9 eShop 4.6 134.4 63 40 125/12 eShop 4.6 134.4 63 40 160/11 eShop 4.6 169.4 63 40 ​ DOVEIQMILL milling inserts SYHU0704.. for face mill 50° Double-sided indexable insert with 8 cutting edges. Large flat chamfer for high surface qualities. Positive rake angle for optimum chip breaking. Note: Standard application values for ae = 0.6 to 1.0×D / ap max = 4.6 mm. The minimum order quantity corresponds to one pack unit quantity (VPE) or a multiple thereof. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K K ​ ​ ​ ​ ​ ​ 22 2510 500 480 400 ● ● 22 2511 200 170 160 140 130 ● ● 22 2512 200 170 160 140 130 ○ ● ● 22 2513 220 190 160 140 130 ● ● 22 2514 240 220 200 180 160 ● ● 22 2515 120 110 ● ● 22 2516 140 140 ● ● 22 2517 140 130 ● ● 22 2518 45 ● ● 22 2519 300 220 ○ ● ● 22 22 2520/​2521 22 2522 190 170 150 130 90 80 270 220 ● ● ● ○ ● 22 2510 22 2512 22 2513 22 2516 22 2518 22 2519 22 2520 22 2522 Type ALU ST900 ST1400 INOX S GG GGG UNI 22 2510 SYHU 0704ADN-P IC28 eShop – – – – – – – 10 19A 19A 19A 19A 19A 19A 19A 19A 19A 19A 19A 19A 19A 22 2511 SYHU 0704ADN IC830 – eShop – – – – – – 10 22 2512 SYHU 0704ADN-MM IC5400 – eShop – – – – – – 10 22 2513 IC830 – – eShop – – – – – 10 22 2514 SYHU 070400N-MM IC830 – – eShop – – – – – 10 22 2515 SYHU 0704ADN IC330 – – – eShop – – – – 10 22 2516 IC840 – – – eShop – – – – 10 22 2517 SYHU 070400ADN IC830 – – – eShop – – – – 10 22 2518 SYHU 070400AD IC882 – – – – eShop – – – 10 22 2519 SYHU 0704ADTN IC5100 – – – – – eShop – – 10 22 2520 IC810 – – – – – – eShop – 10 22 2521 SYHU 070400ADTN IC810 – – – – – – eShop – 10 22 2522 SYHU 0704DN-MM IC808 – – – – – – – eShop 10 fz mm 0.25 0.2 0.18 0.16 0.15 0.25 0.25 – ​ 690
