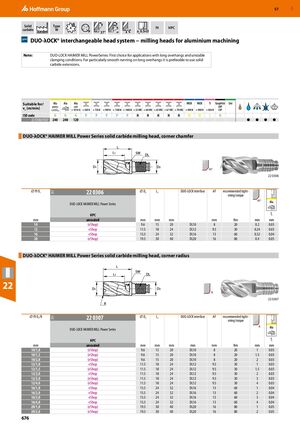

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 676

GBP 57 Solid Type f9 HPC carbide Standard W 4 37° ≠ ae 0.5×D DUO-λOCK® interchangeable head system − milling heads for aluminium machining Note: DUO-LOCK HAIMER MILL PowerSeries: First choice for applications with long overhangs and unstable clamping conditions. For particularly smooth running on long overhangs it is preferable to use solid carbide extensions. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 22 0306/​0307 240 240 120 ● ● ● ● DUO-λOCK® HAIMER MILL Power Series solid carbide milling head, corner chamfer ​ 45° 22 0306 ⌀ f9 D1 22 0306 ⌀ D2 L1 ​ DUO-LOCK interface AF recommended tight- 26Y ening torque 45° DUO-LOCK HAIMER MILL Power Series HPC fz mm uncoated mm mm mm ​ mm Nm mm mm 10 (eShop) 9.6 15 20 DL10 8 20 0.2 0.03 12 eShop 11.5 18 24 DL12 9.5 30 0.24 0.03 16 eShop 15.5 24 32 DL16 13 60 0.32 0.04 20 (eShop) 19.3 30 40 DL20 16 80 0.4 0.05 DUO-λOCK® HAIMER MILL Power Series solid carbide milling head, corner radius ​ 22 R 22 0307 ⌀ f9 D1/R 22 0307 ⌀ D2 L1 ​ DUO-LOCK interface AF recommended tight- 26Y ening torque R DUO-LOCK HAIMER MILL Power Series HPC fz mm uncoated mm mm mm mm mm Nm mm mm 10/1,0 (eShop) 9.6 15 20 DL10 8 20 1 0.03 10/1,5 (eShop) 9.6 15 20 DL10 8 20 1.5 0.03 10/2,0 (eShop) 9.6 15 20 DL10 8 20 2 0.03 12/1,0 eShop 11.5 18 24 DL12 9.5 30 1 0.03 12/1,5 (eShop) 11.5 18 24 DL12 9.5 30 1.5 0.03 12/2,0 eShop 11.5 18 24 DL12 9.5 30 2 0.03 12/3,0 (eShop) 11.5 18 24 DL12 9.5 30 3 0.03 12/4,0 (eShop) 11.5 18 24 DL12 9.5 30 4 0.03 16/1,0 eShop 15.5 24 32 DL16 13 60 1 0.04 16/2,0 eShop 15.5 24 32 DL16 13 60 2 0.04 16/3,0 eShop 15.5 24 32 DL16 13 60 3 0.04 16/4,0 eShop 15.5 24 32 DL16 13 60 4 0.04 20/1,0 (eShop) 19.3 30 40 DL20 16 80 1 0.05 20/2,0 (eShop) 19.3 30 40 DL20 16 80 2 0.05 676
