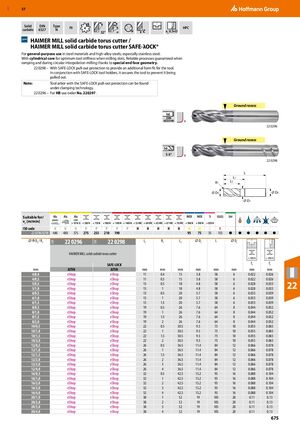

GBP 57 Solid DIN Type f9 HPC carbide 6527 N 4 32° ≠ ae 0.5×D HAIMER MILL solid carbide torus cutter / HAIMER MILL solid carbide torus cutter SAFE-λOCK® For general-purpose use in steel materials and high-alloy steels, especially stainless steel. With cylindrical core for optimum tool stiffness when milling slots. Reliable processes guaranteed when ramping and during circular interpolation milling thanks to special end face geometry. 22 0298 – With SAFE-LOCK pull-out protection to provide an additional form fit for the tool. In conjunction with SAFE-LOCK tool holders, it secures the tool to prevent it being pulled out. Note: Tool arbor with the SAFE-LOCK pull-out protection can be found under clamping technology. 22 0296 – For HB use order No. 220297. Ground recess h6 DIN 6535 HA R 22 0296 Ground recess h6 S-λ® R 22 0298 L L1 R1 LC ⌀ DC ⌀ DS ⌀ D1 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K ​ ​ ​ ​ ​ ​ 22 0296/​0298 480 480 375 275 255 210 190 95 75 35 155 ● ● ● ● ● ● ⌀ f9 DC / R1 22 0296 22 0298 Lc R1 L1 ⌀ D1 L ⌀ Ds 26X 26X HAIMER MILL solid carbide torus cutter < 900 N < 900 N SAFE-LOCK fz fz mm AlTiN AlTiN mm mm mm mm mm mm mm mm 4/0,4 eShop eShop 11 0.4 15 3.8 58 6 0.022 0.026 4/0,5 eShop eShop 11 0.5 15 3.8 58 6 0.022 0.026 5/0,5 5/1,0 eShop eShop eShop eShop 13 13 0.5 1 18 18 4.8 4.8 58 58 6 6 0.028 0.028 0.033 0.033 22 6/0,5 eShop eShop 13 0.5 20 5.7 58 6 0.033 0.039 6/1,0 eShop eShop 13 1 20 5.7 58 6 0.033 0.039 6/1,5 eShop eShop 13 1.5 20 5.7 58 6 0.033 0.039 8/0,5 eShop eShop 19 0.5 26 7.6 64 8 0.044 0.052 8/1,0 eShop eShop 19 1 26 7.6 64 8 0.044 0.052 8/1,5 eShop eShop 19 1.5 26 7.6 64 8 0.044 0.052 8/2,0 eShop eShop 19 2 26 7.6 64 8 0.044 0.052 10/0,5 eShop eShop 22 0.5 30.5 9.5 73 10 0.055 0.065 10/1,0 eShop eShop 22 1 30.5 9.5 73 10 0.055 0.065 10/1,5 eShop eShop 22 1.5 30.5 9.5 73 10 0.055 0.065 10/2,0 eShop eShop 22 2 30.5 9.5 73 10 0.055 0.065 12/0,5 eShop eShop 26 0.5 36.5 11.4 84 12 0.066 0.078 12/1,0 eShop eShop 26 1 36.5 11.4 84 12 0.066 0.078 12/1,5 eShop eShop 26 1.5 36.5 11.4 84 12 0.066 0.078 12/2,0 eShop eShop 26 2 36.5 11.4 84 12 0.066 0.078 12/3,0 eShop eShop 26 3 36.5 11.4 84 12 0.066 0.078 12/4,0 eShop eShop 26 4 36.5 11.4 84 12 0.066 0.078 16/0,5 eShop eShop 32 0.5 42.5 15.2 93 16 0.088 0.104 16/1,0 eShop eShop 32 1 42.5 15.2 93 16 0.088 0.104 16/2,0 eShop eShop 32 2 42.5 15.2 93 16 0.088 0.104 16/3,0 eShop eShop 32 3 42.5 15.2 93 16 0.088 0.104 16/4,0 eShop eShop 32 4 42.5 15.2 93 16 0.088 0.104 20/1,0 eShop eShop 38 1 52 19 105 20 0.11 0.13 20/2,0 eShop eShop 38 2 52 19 105 20 0.11 0.13 20/3,0 eShop eShop 38 3 52 19 105 20 0.11 0.13 20/4,0 eShop eShop 38 4 52 19 105 20 0.11 0.13 675
