Режущие и зажимные инструменты Hoffmann Group 2026 - страница 674

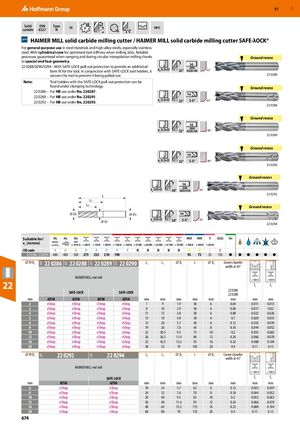

GBP 57 Solid DIN Type f9 HPC carbide 6527 N 4 ≠ HAIMER MILL solid carbide milling cutter / HAIMER MILL solid carbide milling cutter SAFE-λOCK® For general-purpose use in steel materials and high-alloy steels, especially stainless steel. With cylindrical core for optimised tool stiffness when milling slots. Reliable processes guaranteed when ramping and during circular interpolation milling thanks Ground recess to special end face geometry. h6 22 0288/0290/0294 – With SAFE-LOCK pull-out protection to provide an additional DIN form fit for the tool. In conjunction with SAFE-LOCK tool holders, it ae 0.5×D 32° 6535 HA 45° secures the tool to prevent it being pulled out. 22 0286 Note: Tool holders with the SAFE-LOCK pull-out protection can be found under clamping technology. Ground recess 22 0286 – For HB use order No. 220287. h6 22 0289 – For HB use order No. 220291. ae 0.5×D 32° S-λ® 45° 22 0292 – For HB use order No. 220293. 22 0288 Ground recess h6 DIN ae 0.5×D 32° 6535 HA 90° 22 0289 Ground recess h6 ae 0.5×D 32° S-λ® 90° 22 0290 Ground recess h6 DIN ae 0.05×D 38° 6535 HA 45° 22 0292 L L1 LC Ground recess ⌀ Dc ⌀ DS h6 ae 0.05×D 38° S-λ® 45° ⌀ D1 22 0294 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K ​ ​ ​ ​ ​ ​ 22 0286–​22 0294 480 480 350 275 255 210 190 95 75 35 155 ● ● ● ● ● ● ⌀ f9 DC 22 0286 22 0288 22 0289 22 0290 Lc L1 ⌀ D1 L ⌀ Ds Corner chamfer 26X 26X 26X 26X width at 45° HAIMER MILL end mill < 900 N < 900 N 22 SAFE-LOCK SAFE-LOCK ​ ​ ​ ​ ​ 22 0286 fz ​ fz ​ 22 0288 mm AlTiN AlTiN AlTiN AlTiN mm mm mm mm mm mm mm mm 2 eShop eShop eShop eShop 7 9 1.9 58 6 0.04 0.011 0.013 3 eShop eShop eShop eShop 8 10 2.9 58 6 0.06 0.017 0.02 4 eShop eShop eShop eShop 11 15 3.8 58 6 0.08 0.022 0.026 5 eShop eShop eShop eShop 13 18 4.8 58 6 0.1 0.028 0.033 6 eShop eShop eShop eShop 13 20 5.7 58 6 0.12 0.033 0.039 8 eShop eShop eShop eShop 19 26 7.6 64 8 0.16 0.044 0.052 10 eShop eShop eShop eShop 22 30.5 9.5 73 10 0.2 0.055 0.065 12 eShop eShop eShop eShop 26 36.5 11.4 84 12 0.24 0.066 0.078 16 eShop eShop eShop eShop 32 42.5 15.2 93 16 0.32 0.088 0.104 20 eShop eShop eShop eShop 38 52 19 105 20 0.4 0.11 0.13 ⌀ f9 DC 22 0292 22 0294 Lc L1 ⌀ D1 L ⌀ Ds Corner chamfer 26X 26X width at 45° HAIMER MILL end mill < 900 N < 900 N SAFE-LOCK fz fz mm AlTiN AlTiN mm mm mm mm mm mm mm mm 6 eShop eShop 18 24 5.7 62 6 0.12 0.033 0.039 8 eShop eShop 24 32 7.6 70 8 0.16 0.044 0.052 10 eShop eShop 30 40 9.5 82 10 0.2 0.055 0.065 12 eShop eShop 36 48 11.4 95 12 0.24 0.066 0.078 16 eShop eShop 48 64 15.2 115 16 0.32 0.088 0.104 20 eShop eShop 60 80 19 133 20 0.4 0.11 0.13 674
