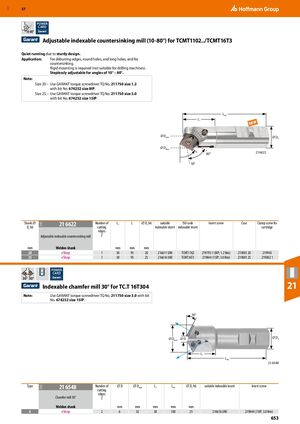

GBP 57 POWER CARD 10-80° Adjustable indexable countersinking mill (10-80°) for TCMT1102../TCMT16T3 Quiet running due to sturdy design. Application: For deburring edges, round holes, and long holes, and for countersinking. Rigid mounting is required (not suitable for drilling machines). Steplessly adjustable for angles of 10° – 80°. Note: Size 20 – Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Size 25 – Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. Ltot L1 NEW ⌀ Dmin ⌀ DS ⌀ Dmax 80° ​ 21 6622 10° Shank ⌀ 21 6622 Number of L1 L ⌀ Ds h6 suitable ISO code Insert screw Case Clamp screw for 21O Ds h6 cutting indexable insert indexable insert cartridge edges Adjustable indexable countersinking mill Z mm Weldon shank ​ mm mm mm ​ ​ ​ ​ ​ 20 eShop 1 30 95 20 216611 UNI TCMT1102 219795 1 (8IP; 1.2 Nm) 219001 20 219945 25 eShop 1 30 95 25 216616 UNI TCMT16T3 219844 (15IP; 3.0 Nm) 219001 25 219002 1 POWER CARD 30° 30° Indexable chamfer mill 30° for TC.T 16T304 21 Note: Use GARANT torque screwdriver TQ No. 211750 size 3.0 with bit No. 674252 size 15IP. 30° ⌀ Dmax ⌀ D ⌀ DS L1 Ltot 21 6548 Type 21 6548 Number of ⌀D ⌀ Dmax L1 Ltot ⌀ Ds h6 suitable indexable insert Insert screw 21O cutting edges Chamfer mill 30° Z Weldon shank ​ mm mm mm mm mm ​ ​ 6 eShop 2 6 32 38 100 25 216616 UNI 219844 (15IP; 3.0 Nm) 653
