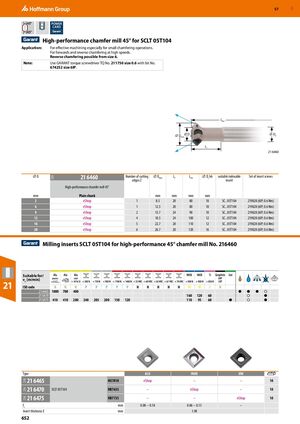

GBP 57 45° POWER CARD 45° High-performance chamfer mill 45° for SCLT 05T104 Application: For effective machining especially for small chamfering operations. For forwards and reverse chamfering at high speeds. Reverse chamfering possible from size 6. Note: Use GARANT torque screwdriver TQ No. 211750 size 0.6 with bit No. 674252 size 6IP. Ltot ⌀ Dmax⌀ D ⌀ DS L1 21 6460 ⌀D 21 6460 Number of cutting ⌀ Dmax L1 Ltot ⌀ Ds h6 suitable indexable Set of insert screws 21O edges Z insert High-performance chamfer mill 45° mm Plain shank ​ mm mm mm mm ​ ​ 2 eShop 1 8.5 20 80 10 SC.. 05T104 219828 (6IP; 0.6 Nm) 6 eShop 1 12.5 20 80 10 SC.. 05T104 219828 (6IP; 0.6 Nm) 9 eShop 2 15.7 24 90 10 SC.. 05T104 219828 (6IP; 0.6 Nm) 12 eShop 4 18.5 24 100 12 SC.. 05T104 219828 (6IP; 0.6 Nm) 16 eShop 5 22.7 20 110 12 SC.. 05T104 219828 (6IP; 0.6 Nm) 20 eShop 6 26.7 20 120 16 SC.. 05T104 219828 (6IP; 0.6 Nm) ​ Milling inserts SCLT 05T104 for high-performance 45° chamfer mill No. 216460 Suitable for/ vc [m/min] 21 ISO code N 21 6465 1000 N 700 N 400 P P P P P H H H H H M M S N ​ ​ ● ​ ● ​ ● ​ ○ ​ 21 6470 160 120 60 ○ ● 21 6475 410 410 280 240 205 200 150 120 110 95 60 ● ○ ● Type ALU INOX UNI 21 6465 HU7810 eShop – – 10 21A 21 6470 SCLT 05T104 HB7635 – eShop – 10 21A 21 6475 HB7735 – – eShop 10 21A fz mm 0.08 − 0.18 0.06 − 0.15 – ​ Insert thickness E mm 1.98 ​ 652
