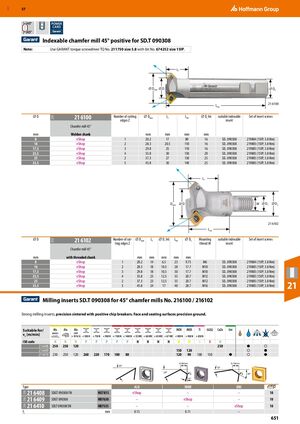

GBP 57 45° POWER CARD 45° Indexable chamfer mill 45° positive for SD.T 090308 Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. L1 ⌀ Dmax ⌀ D ⌀ DS 21 6100 Ltot ⌀D 21 6100 Number of cutting ⌀ Dmax L1 Ltot ⌀ Ds h6 suitable indexable Set of insert screws 21O edges Z insert Chamfer mill 45° mm Weldon shank ​ mm mm mm mm ​ ​ 8 eShop 1 20.2 17 80 16 SD.. 090308 219804 (15IP; 3.8 Nm) 16 eShop 2 28.3 20.5 110 16 SD.. 090308 219805 (15IP; 3.8 Nm) 17,5 eShop 3 29.8 25 110 16 SD.. 090308 219805 (15IP; 3.8 Nm) 23,5 eShop 4 35.8 30 130 20 SD.. 090308 219805 (15IP; 3.8 Nm) 25 eShop 2 37.3 27 130 25 SD.. 090308 219805 (15IP; 3.8 Nm) 33,5 eShop 5 45.8 30 140 25 SD.. 090308 219805 (15IP; 3.8 Nm) L1 Dmax ⌀ D M ⌀ D1 ⌀ D2 21 6102 Ltot ⌀D 21 6102 Number of cut- ⌀ Dmax L1 ⌀ D1 h6 Ltot ⌀ D2 Mounting suitable indexable Set of insert screws 21O ting edges Z thread M insert Chamfer mill 45° mm with threaded shank ​ mm mm mm mm mm ​ ​ ​ 8 eShop 1 20.2 14 6.5 23 9.75 M6 SD.. 090308 219804 (15IP; 3.8 Nm) 16 eShop 2 28.3 18 10.5 28 17.7 M10 SD.. 090308 219805 (15IP; 3.8 Nm) 17,5 eShop 3 29.8 18 10.5 30 17.7 M10 SD.. 090308 219805 (15IP; 3.8 Nm) 23,5 eShop 4 35.8 23 12.5 35 20.7 M12 SD.. 090308 219805 (15IP; 3.8 Nm) 25 eShop 2 37.3 23 12.5 35 20.7 M12 SD.. 090308 219805 (15IP; 3.8 Nm) 33,5 eShop 5 45.8 24 17 40 28.7 M16 SD.. 090308 219805 (15IP; 3.8 Nm) 21 ​ Milling inserts SD.T 090308 for 45° chamfer mills No. 216100 / 216102 Strong milling inserts, precision sintered with positive chip breakers. Face and seating surfaces precision ground. Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 21 6408 250 250 120 250 ● ○ 21 6409 150 120 ○ ● 21 6410 250 250 120 260 220 170 100 80 120 90 100 150 ● ○ ● 0.04mm 0.10mm 30° 10° 28° R R 30° 15° Type ALU INOX UNI 21 6408 SDGT 090308 FN HU7815 eShop – – 10 21A 21A 21A 21 6409 SDGT 090308 HB7630 – eShop – 10 21 6410 SDLT 090308 EN HB7535 – – eShop 10 fz mm 0.15 0.11 – ​ 651
